Description

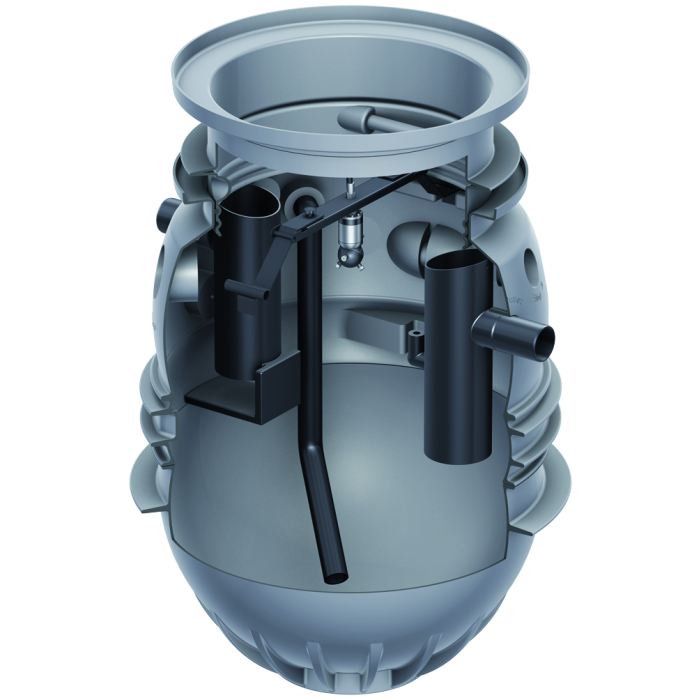

Grease separator, ACO model LIPUMAX P-DA NS10/1005, for below ground installation, with vertical design, made in high-density polyethylene. Separator of nominal size 10 l/s, with integrated sludge trap of 1005 l, grease retention capacity of 415 l and a total volume of 2170 l, with internal parts made in high-density polyethylene, dimensioned and homologated according to EN-1825. Include direct suction pipe DN75 with Storz-75 B for fast conection to hose, filling system with 3/4'' ball válve for conection to the clean water system and internal hidromechanical cleaning system that works at 175 bar and with a flow rate of 13 l/min, electrical connection 400V/50hz/16A/3,9kW with automatic cleaning and filling programe. Height 2828 mm and diameter of Ø1320 mm, with inlet and outlet connections DN150. Weight: 125 kg.
Article:32108300
Article:32108300
Characteristics
- Grease separator according to EN 1825 and DIN 4040-100.
- Internal parts in high-density polyethylene.
- Emptying through direct suction pipe, filling and cleaning through automatic device.
- Adjustable upper part available depending on installation depth and load class.
- Easy handling and installation.
Technical Specifications
Dimensions 1
- Model:
- LIPUMAX P- DA NS10/1005
- weight emtpy (kg):
- 125
- Flow rate (l/s):
- 10
- DN (mm):
- 150
- Sludge trap (L):
- 1005
- Grease capacity (L):
- 415
- Total capacity (L):
- 2170

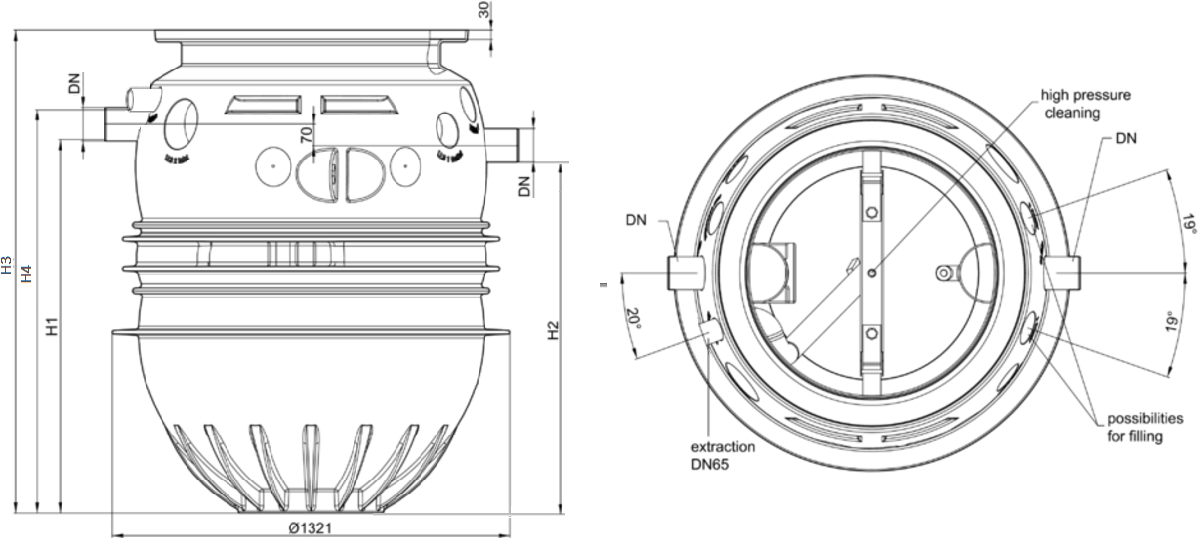

Dimensions 2
- H1 (mm):
- 2438
- H2 (mm):
- 2368
- H3 (mm):
- 2828
