Description

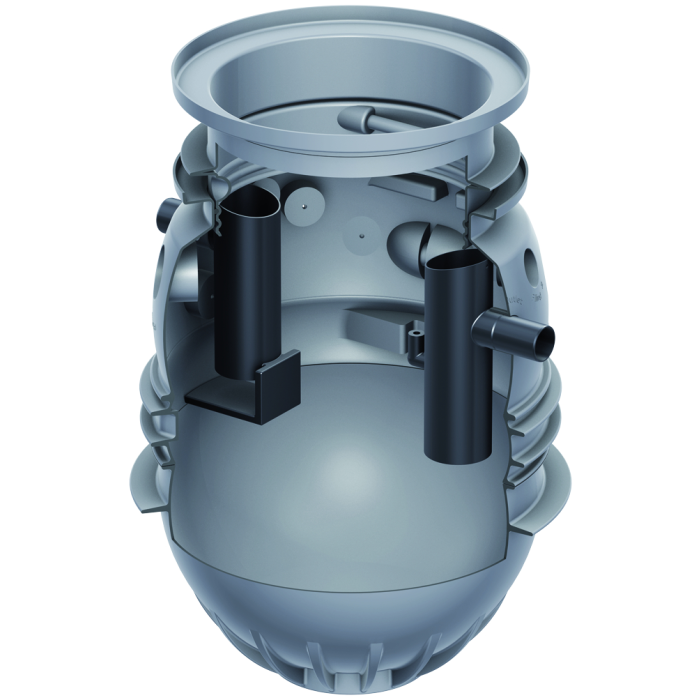

Grease separator, ACO model LIPUMAX P-B NS2/460, for below ground installation, with vertical design, made in high-density polyethylene. Separator of nominal size 2 l/s, with integrated sludge trap of 460 l, grease retention capacity of 270 l and a total volume of 930 l, with internal parts made in high-density polyethylene, dimensioned and homologated according to EN-1825. Height 1604 mm and diameter of Ø1320 mm, with inlet and outlet connections DN100. Weight: 79 kg.
Article:32028010
Article:32028010
Characteristics
- Grease separator according to EN 1825 and DIN 4040-100.
- Internal parts in high-density polyethylene.
- Emptying and cleaning through access.
- Adjustable upper part available depending on installation depth and load class.
- Easy handling and installation.
Technical Specifications
Dimensions 1
- Model:
- LIPUMAX P- B NS2/460
- weight emtpy (kg):
- 79
- Flow rate (l/s):
- 2
- DN (mm):
- 100
- Sludge trap (L):
- 460
- Grease capacity (L):
- 270
- Total capacity (L):
- 930

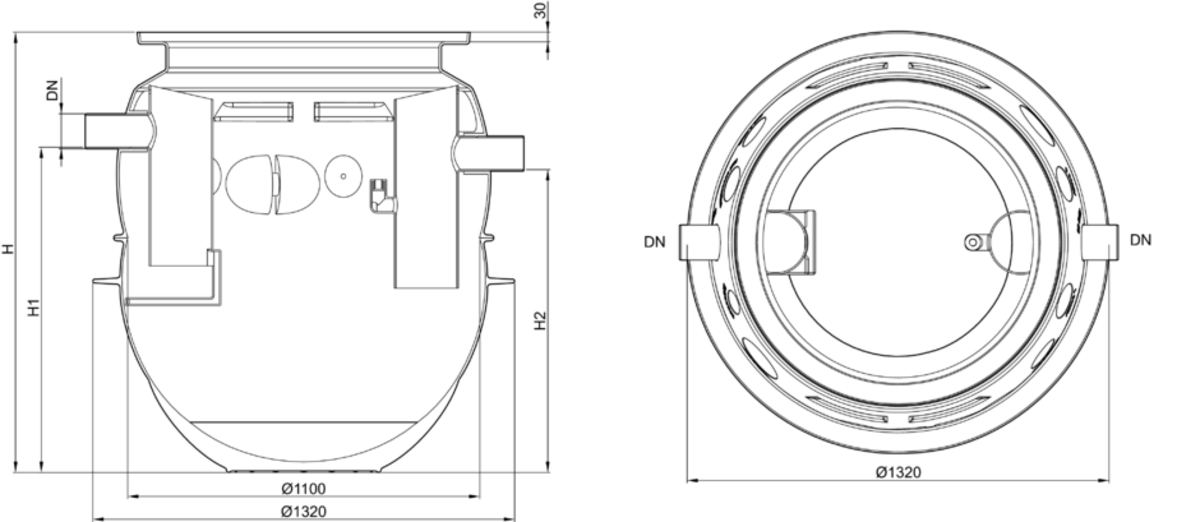

Dimensions 2
- H1 (mm):
- 1239
- H2 (mm):
- 1169
- H3 (mm):
- 1604
