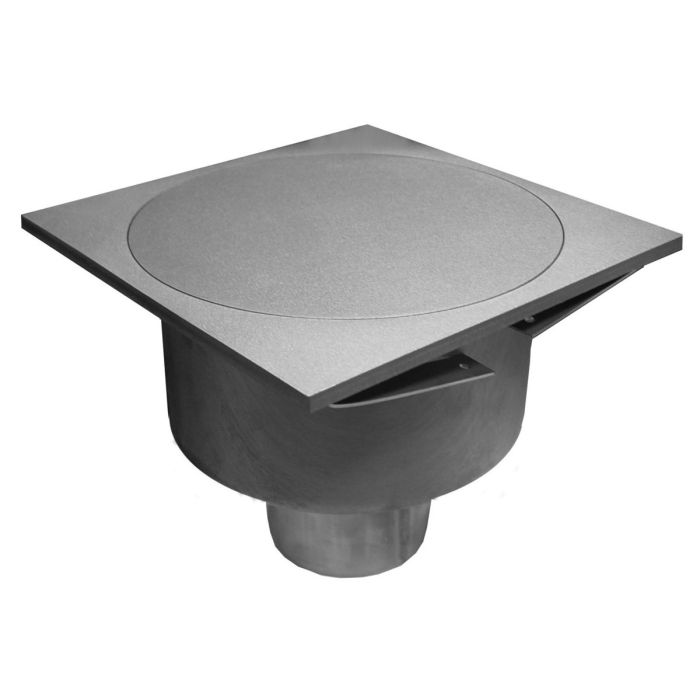

GULLY SIF AISI304 SELECT 250X250MM CERAMIC V/OUT DN110 W/ESTANCA GR
0Z302256
Project: Consult
Description
Gullies without FAT made in stainless steel AISI 304 type ACO SELECT, footprint 250x250 mm for caramic or resin floors, with vertical outlet DN110, rounded body to facilitate cleaning and removable siphon with an approximate flow of 2 l/s and a retention of ;60 mm in height of water, all according to EN-1253 and EN-1672 regulations. Includes estanca ciruclar gratng suitable for a 30kN load class, ground connection and leveling feet. pickled and passivated finish. Weight: 6,5 kg.
Article:0Z302256
Article:0Z302256
Characteristics
- The foul air trap allows access to unblock the drain pipe.
- The outlet is vertical and allows easy connection to standard diameter pipe.
- The gully is supplied with a circular cover located at the top.
Technical Specifications
Dimensions
- Material:
- AISI304
- Weight (kg):
- 6,5
- DN (mm):
- 110
- Flow rate EN-1253-1 / Direct (l/s):
- 2
- Water seal (mm):
- 60
- D bottom (mm):
- 201
- H extermal (mm):
- 195
