Description
ACO ROXPLUS 200 type domestic wastewater regeneration station by means of a membrane system manufactured in glass-reinforced plastic (GRP) in horizontal format and for underground installation. With a treatment capacity of 200 users and a hydraulic demand of 30 m³/day with high purification performance in compliance with RD 1085/2024. It consists of a first reactor chamber for biological oxidation followed by a membrane bioreactor for sludge filtration and recirculation in a single unit. Compact station with a total length of 8997 mm, width 2530 mm and 2665 mm high, with inlet connection DN160 and treated water outlet DN63. With 1 lid of dimensions Ø567mm made in polyethylene, and 1 lid of dimensions 2500x900mm manufactured in glass-reinforced plastic (GRP). Includes roughing grid RCA 1, reactor blower, membrane blower, flat membrane module, submersible pump for recirculation, permeate extraction pump, flow meter to regulate permeate flow, pressure transmitter and electrical panel of 380 V. Total installed power: 7,07 kW.
Includes pre-chlorination system. Weight:2397 kg.
Item:0PK00536
Includes pre-chlorination system. Weight:2397 kg.
Item:0PK00536
Characteristics
Benefits
- Compact system. Oxidation, membrane filtration and recirculation in a single unit
- Saving mains water
- High effluent quality
- The membrane bioreactor is insensitive to sedimentation problems. No decanter required.
Reuse of water for irrigation, flushing of WC cisterns and outdoor cleaning
- Application areas
- Domestic wastewater reclamation equipment ideal for buildings where there is only one combined sewage system.
Roughing
- Manufactured in AISI304
- With >3 mm pitch
Reactor
- Removal of organic matter and nutrients
- Air supply by compressor/s
- Fine bubble air diffuser between 1-3 mm
Bioreactor
- Solid-liquid separation by filtration using membrane technology
IP protection 44
- Installed power 7,07 Kw
- Electrical panel and PLC
- Corrente trifásica 380V
Effluent qualities / Reduction of parameters
- BOD5: <15ppm / 96%
- COD: <75ppm / 90%
- SS: <2ppm / 99%
- Nt: <15ppm / 75%
- Turbidity: <1NTU / 99%
- E. Coli: <100UFC/100ml / 6 ud log reduction
Operation
- The system is implemented in the following steps:
- 1- Screen. The thick solids dragged by the water are intercepted by an automatic circular grinding grate at the entrance to the RCA1 type equipment.
- 2- Biological oxidation: In the biological reactor, the biological decomposition of organic matter takes place thanks to the supply of air and the generation of aerobic microorganisms. In contrast to conventional total oxidation, the reactor works with higher concentrations of solids, so that more oxygenation is required and, as the sludge age is higher, higher treatment yields are obtained.
- 3- Filtration: Solid-liquid separation is achieved by filtration using membrane technology. By means of a suction system, a vacuum pressure is exerted on the membranes, creating an outside - inside flow so that the water penetrates through the membranes, leaving the solids and bacteria on the outer wall. The diffusers create an upward air flow which cleans the outer wall surface of the membranes and ensures aerobic conditions. The water is chlorinated by dosing sodium hypochlorite, thus preserving the sanitary properties of the effluent and ensuring the reuse of the water for residential use.
- 4- Outlet: The system is completed with a permeate extraction pump followed by a flow meter that controls the system to operate at a constant flow rate. This is produced thanks to the action of a frequency variator that acts on the pump. In addition, a pressure transmitter is incorporated to ensure that the membranes work under optimum conditions.
Technical Specifications
Dimensions 1
- Model:
- ROXPLUS 200
- Population equivalent (PE):
- 200
- Hydraulic demand (m³/day):
- 30
- Total volume (l):
- 50000
- Weight (Kg):
- 2200

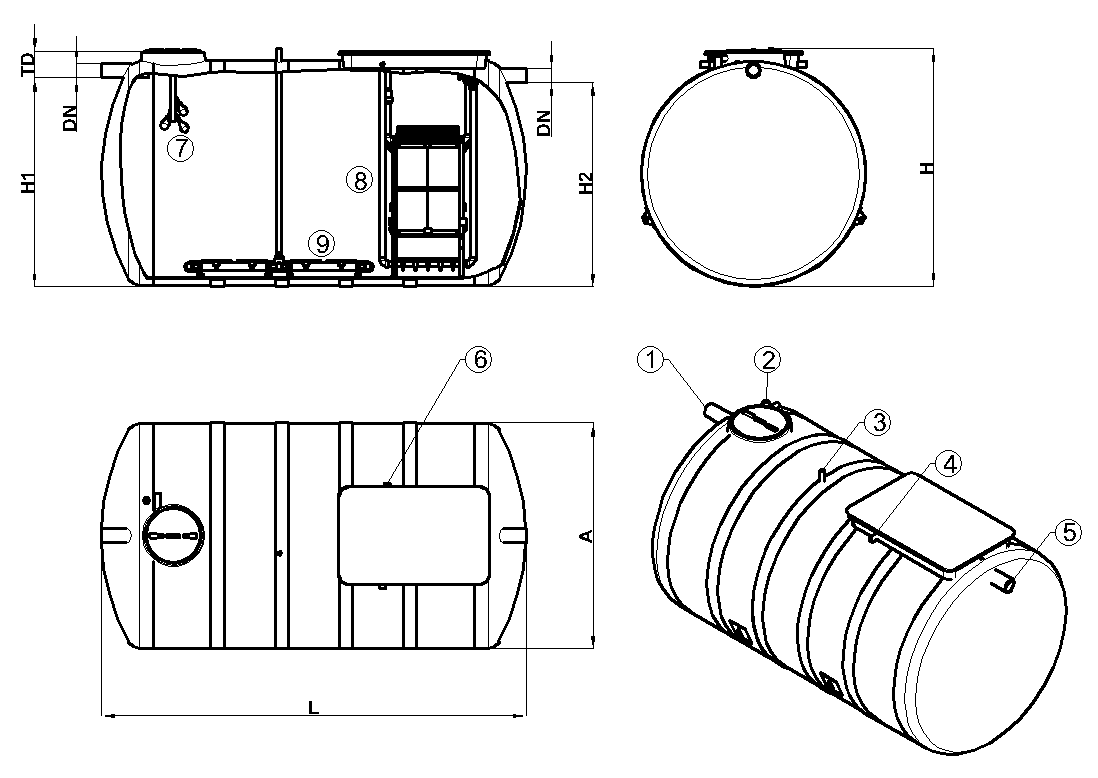

Dimensions 2
- L (mm):
- 8997
- A(mm):
- 2530
- H (mm):
- 2665
- H1 (mm):
- 2335
- H2 (mm):
- 2285
- DN (mm):
- 160
- TD (mm):
- 330
Dimensions 3
- 1- Inlet pipe:
- 2- Sludge recirculation inlet:
- 3- Reactor air inlet:
- 4- Bioreactor air inlet:
- 5- Overflow:
- 6- Treated water outlet:
- 7- Level sensors:
- 8- Ultrafiltration membranes:
- 9- Air diffuser grille:
