DOMESTIC WASTEWATER TREAT. PLANT ROX 2000 D4

0PK00341

209.333 €

Description

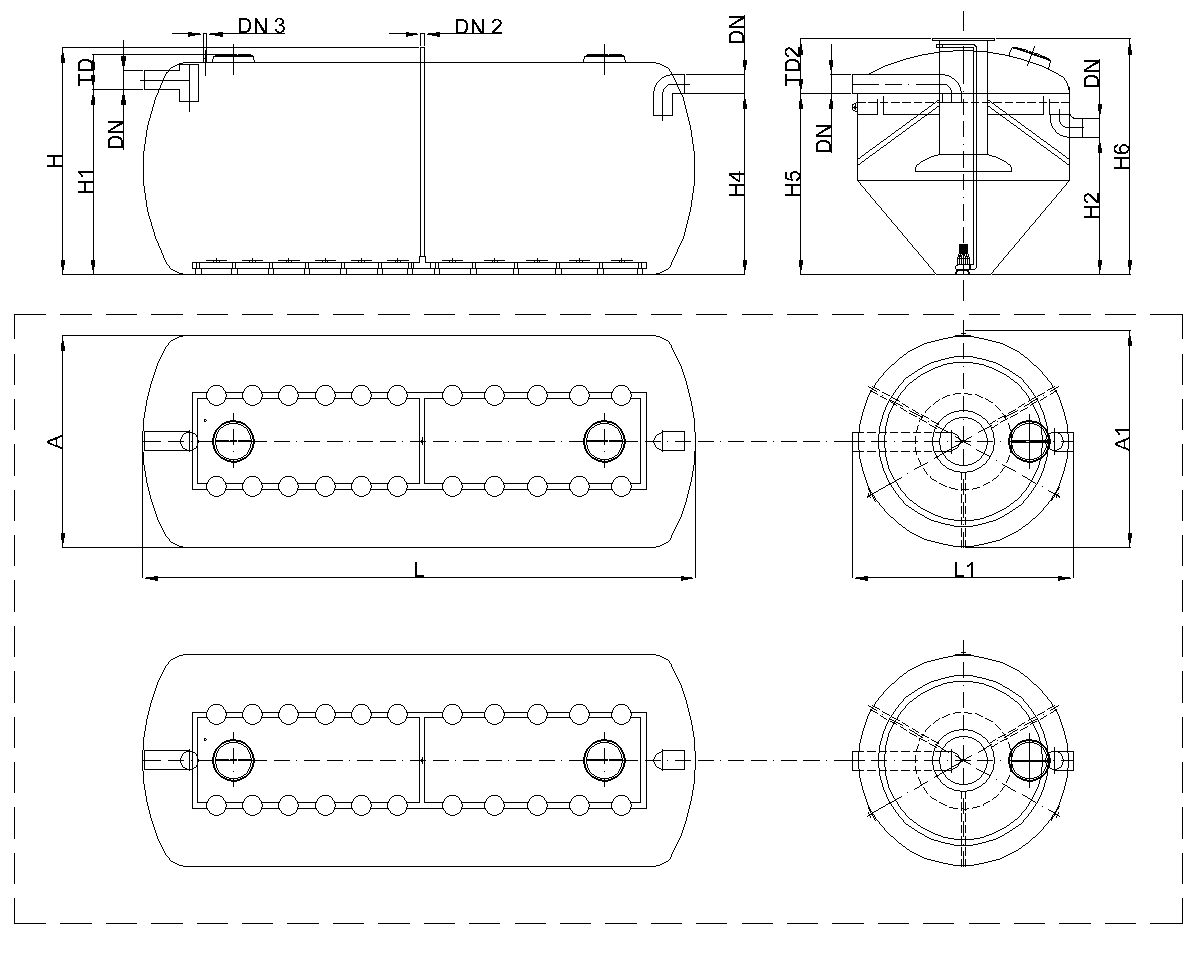

Wastewater treatment plant type ACO ROX 2000 D4 through a total oxidation system manufactured in glass-reinforced plastic (GRP), in horizontal format for underground installation. With treatment capacity for 2000 users and a hydraulic demand of 300 m³/day, with high purification performance in compliance with RD 509/1996. Solution formed by 4 equipment, a first reactor stage with equipment of dimensions 13683mm in length, 4000mm in width and 4250mm in height. With inlet and outlet connection DN315 and with 2 access covers to the inside of the equipment of dimensions Ø567 realised in polyethylene. Followed by a second clarifier stage with equipment of dimensions 4162mm lenght, 4082mm width and 5002mm height. With inlet and outlet connection DN315 and with 2 access covers inside the equipment, 1 cover of dimensions Ø800performed in glass-reinforced plastic (GRP) and 1 cover of dimensions Ø567 realised in polyethylene. Total installed power: 221,051kW. Weight: 12721kg.
Code:0PK00341

Characteristics

Benefits

Compact water treatment plant.
Easy installation and maintenance.
Low power consumption.

Areas of application

Equipment for the treatment of sewage by oxidation in small and medium-sized communities.

Roughing (Recommended)

Manufactured in GRP.
Filter with 10 mm pitch.

Reactor

Removal of organic matter and nutrients.
Air supply by compressor(s).
Fine bubble air diffusers between 1-3 mm.

Clarifier

Sludge recirculation by pumping.

Electrical panel and PLC

Three-phase current 400V.
IP-44 protection
Installed potency 7,1kW

Effluent qualities

BOD5 (mg/l) <10
COD (mg/l) <50
SS (mg/l) <10

The equipment is designed to treat waste water with the following composition: BOD5: 400ppm, COD: 600ppm, SS: 450ppm

Effluent qualities
BOD5 (%) = 95
COD (%) = 89
SS (%) = 96

3- Decanting: The sludge resulting from the decomposition of the organic matter is calmed, deposited inside the decanter. The decanted sludge is recirculated back to the reactor by pumping .

Stages of operation:
1- Screen (recommended): Coarse solids carried by the water are intercepted by a grate at the inlet of the equipment. For small populations, due to the high variability of the influent, it is recommended to install a decanter upstream.
2- Biological oxidation: In the biological reactor, the biological decomposition of organic matter takes place thanks to the supply of air and the generation of aerobic microorganisms.

Technical Specifications
