Description

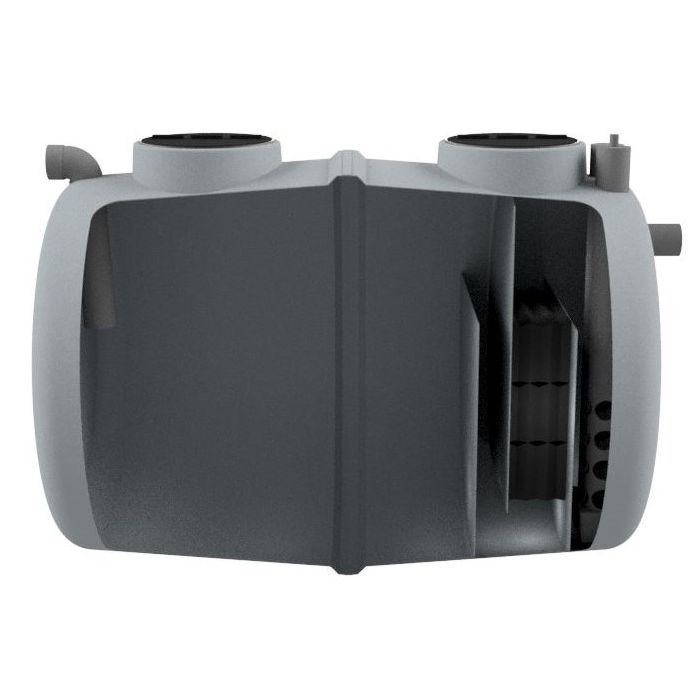

ACO light oil separator model OLEOLAM G-H NS10, for underground installation, with vertical design made in glass-reinforced plastic (GRP) in gray color. Separator Class I (5 ppm) according to UNE EN 858, nominal size 10 l/s, with integrated sludge trap of 5000 l, total capacity of light oils retention of 1895 l and a total volume of 8000 l. The separator is formed by Inlet and outlet connections DN160PVC. Include inlet deflector, removable coalescent filter and outlet with calibrated floater to 0,90gr/cm³ for automatic closing in case of light oil excess. With 2174 mm height, 3018 mm lenght and 2076 mm width, dispose of 2 access openings with . Total weight:290 kg.
Characteristics
- Light oil separator Clase I (5 ppm) acording to UNE EN 858.
- Horizontal design made of glass-reinforced plastic (GRP)
- With coalescing filter and automatic closing system with a float set at 0.90 gr/cm³
- Easy to install and handle
Technical Specifications

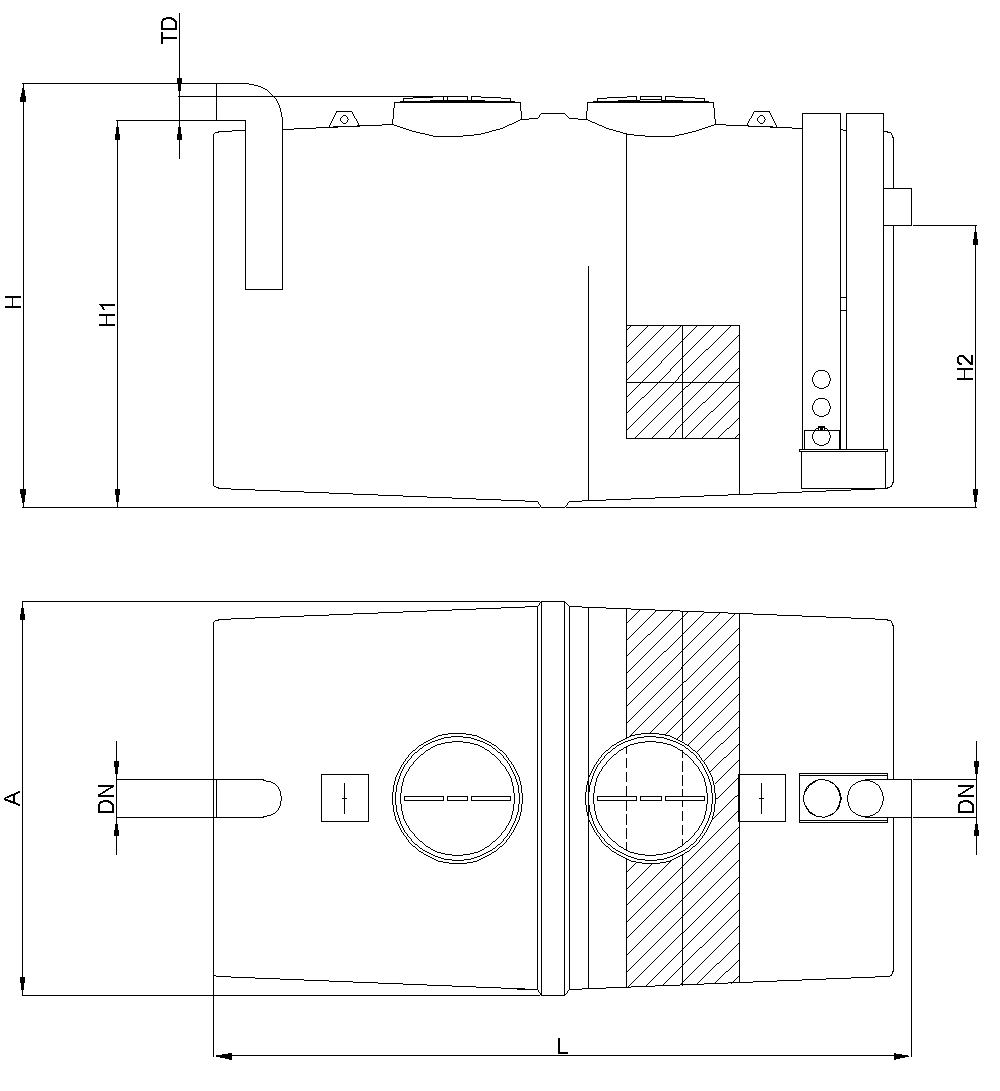

Dimensions
- Nominal size (l/s):
- 10
- Sludge trap capacity (l):
- 5000
- Light oil capacity (l):
- 1895
- Total capacity (l):
- 8000
- Weight (kg):
- 290
- DN (mm):
- 160
- H (mm):
- 2174
- H1 (mm):
- 2045
- H2 (mm):
- 1525
- L (mm):
- 3018
- A (mm):
- 2076
- TD (mm):
- 129
