Description
ACO light oil separator model OLEOLAM BYPASS G-V NS6-30, for underground installation, with vertical design made in glass-reinforced plastic (GRP) in gray color. Separator Class I (5 ppm) according to UNE EN 858, nominal size 6 l/s and with By-pass sistem for a maximun flow rate of 30 l/s, with integrated sludge trap of 600 l, total capacity of light oils retention of 935 l and a total volume of 4000 l. The separator is formed by Inlet and outlet connections DN250PVC. Include inlet deflector, removable coalescent filter and outlet with calibrated floater to 0,90gr/cm³ for automatic closing in case of light oil excess. With 1830 mm height, 2241 mm lenght and 2160 mm width, dispose of 2 access openings with . Total weight:170 kg.
Characteristics
- Light oil separator Clase I (5 ppm) acording to UNE EN 858.
- Vertical design made of glass-reinforced plastic (GRP)
- With coalescing filter and automatic closing system with a float set at 0.90 gr/cm³
- Easy to install and handle
Technical Specifications

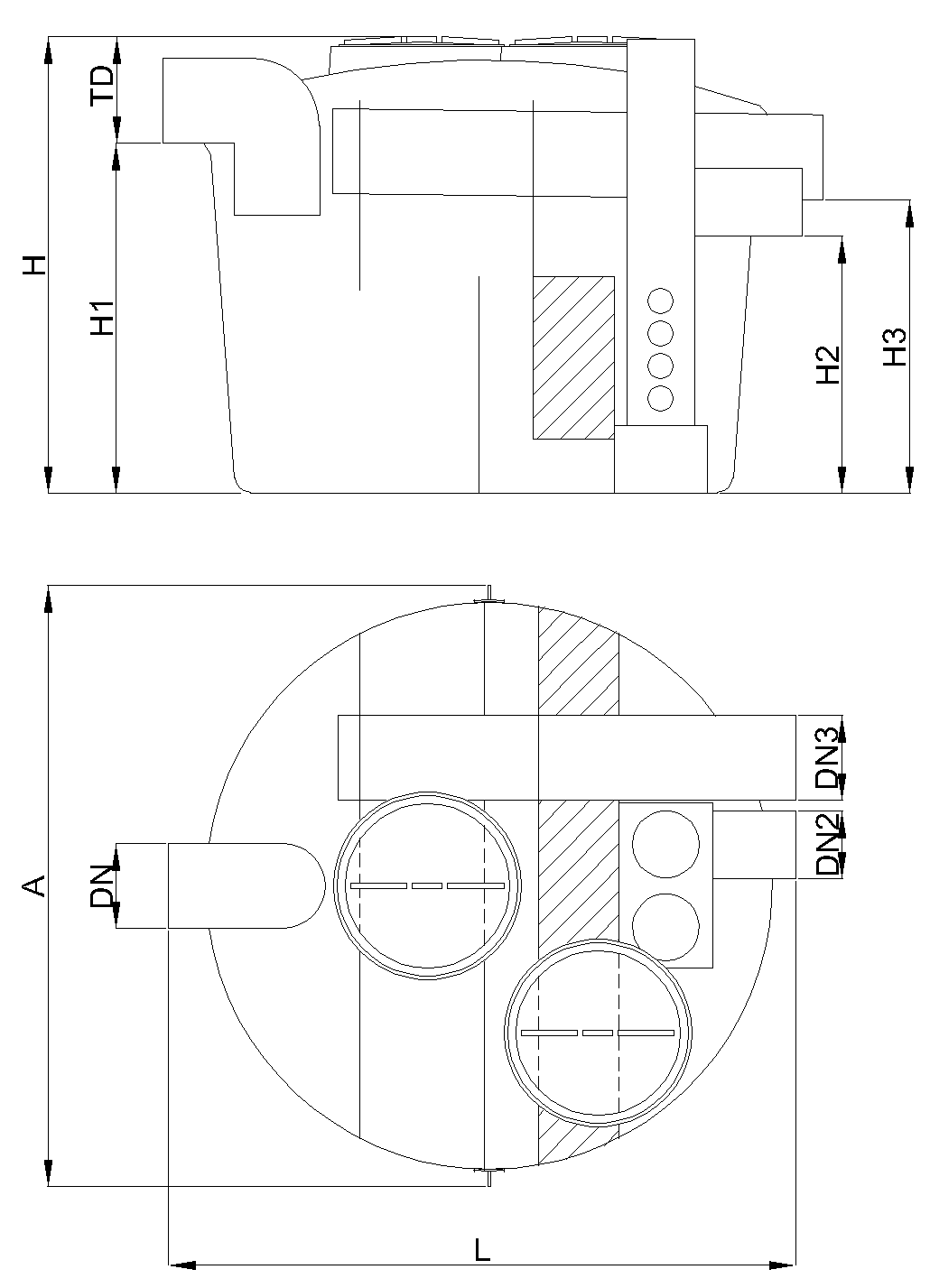

Dimensions
- Nominal size (l/s):
- 6
- Max. flow rate By-pass (l/s):
- 30
- Sludge trap capacity (l):
- 600
- Light oil capacity (l):
- 935
- Total capacity (l):
- 4000
- Weight (kg):
- 170
- DN (mm):
- 250
- DN2 (mm):
- 200
- DN3 (mm):
- 250
- H (mm):
- 1830
- H1 (mm):
- 1350
- H2 (mm):
- 950
- H3 (mm):
- 1198
- L (mm):
- 2241
- A (mm):
- 2160
- TD (mm):
- 338
