Description

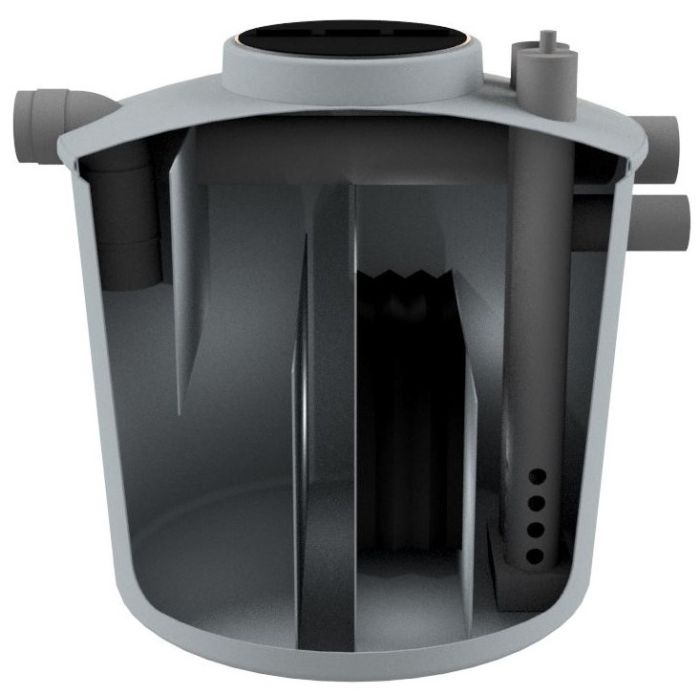

ACO light oil separator model OLEOLAM BYPASS G-V NS3-15, for underground installation, with vertical design made in glass-reinforced plastic (GRP) in gray color. Separator Class I (5 ppm) according to UNE EN 858, nominal size 3 l/s and with By-pass sistem for a maximun flow rate of 15 l/s, with integrated sludge trap of 300 l, total capacity of light oils retention of 310 l and a total volume of 2200 l. The separator is formed by Inlet and outlet connections DN200PVC. Include inlet deflector, removable coalescent filter and outlet with calibrated floater to 0,90gr/cm³ for automatic closing in case of light oil excess. With 1630 mm height, 1898 mm lenght and 1600 mm width, dispose of 1 access opening with (Ø567).. Total weight:130 kg.
Characteristics
- Light oil separator Clase I (5 ppm) acording to UNE EN 858.
- Vertical design made of glass-reinforced plastic (GRP)
- With coalescing filter and automatic closing system with a float set at 0.90 gr/cm³
- Easy to install and handle
Technical Specifications

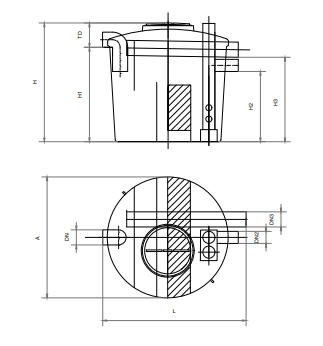

Dimensions
- Nominal size (l/s):
- 3
- Max. flow rate By-pass (l/s):
- 15
- Sludge trap capacity (l):
- 300
- Light oil capacity (l):
- 310
- Total capacity (l):
- 2200
- Weight (kg):
- 130
- DN (mm):
- 200
- DN2 (mm):
- 160
- DN3 (mm):
- 200
- H (mm):
- 1630
- H1 (mm):
- 1250
- H2 (mm):
- 930
- H3 (mm):
- 1117
- L (mm):
- 1898
- A (mm):
- 1600
- TD (mm):
- 322
