Description

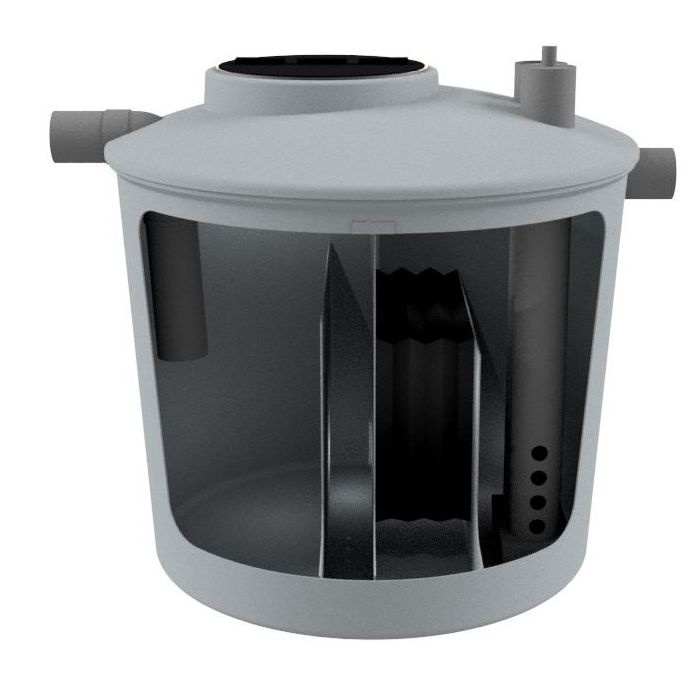

ACO light oil separator model OLEOLAM G-V NS6, for underground installation, with vertical design made in glass-reinforced plastic (GRP) in gray color. Separator Class I (5 ppm) according to UNE EN 858, nominal size 6 l/s, with integrated sludge trap of 600 l, total capacity of light oils retention of 885 l and a total volume of 2200 l. The separator is formed by Inlet and outlet connections DN160PVC. Include inlet deflector, removable coalescent filter and outlet with calibrated floater to 0,90gr/cm³ for automatic closing in case of light oil excess. With 1705 mm height, 1728 mm lenght and 1615 mm width, dispose of 1 access opening with (Ø567).. Total weight:100 kg.
Characteristics
- Light oil separator Clase I (5 ppm) acording to UNE EN 858.
- Vertical design made of glass-reinforced plastic (GRP)
- With coalescing filter and automatic closing system with a float set at 0.90 gr/cm³
- Easy to install and handle
Technical Specifications

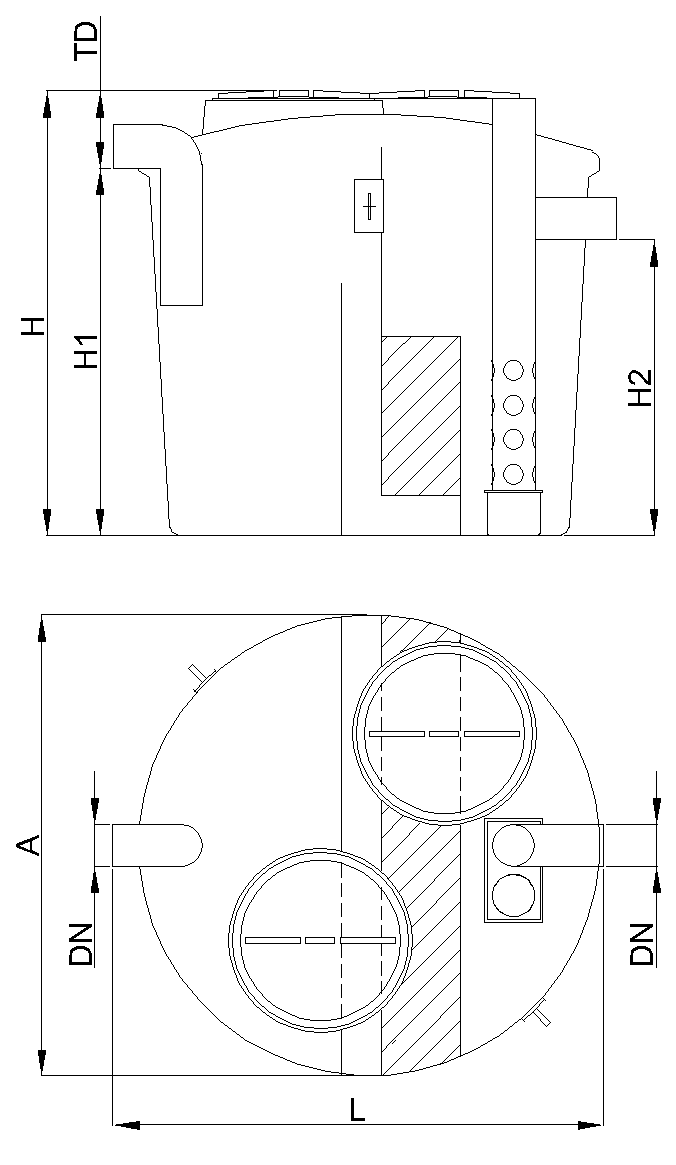

Dimensions
- Nominal size (l/s):
- 6
- Sludge trap capacity (l):
- 600
- Light oil capacity (l):
- 885
- Total capacity (l):
- 2200
- Weight (kg):
- 100
- DN (mm):
- 160
- H (mm):
- 1705
- H1 (mm):
- 1250
- H2 (mm):
- 980
- L (mm):
- 1728
- A (mm):
- 1615
- TD (mm):
- 327
