Description

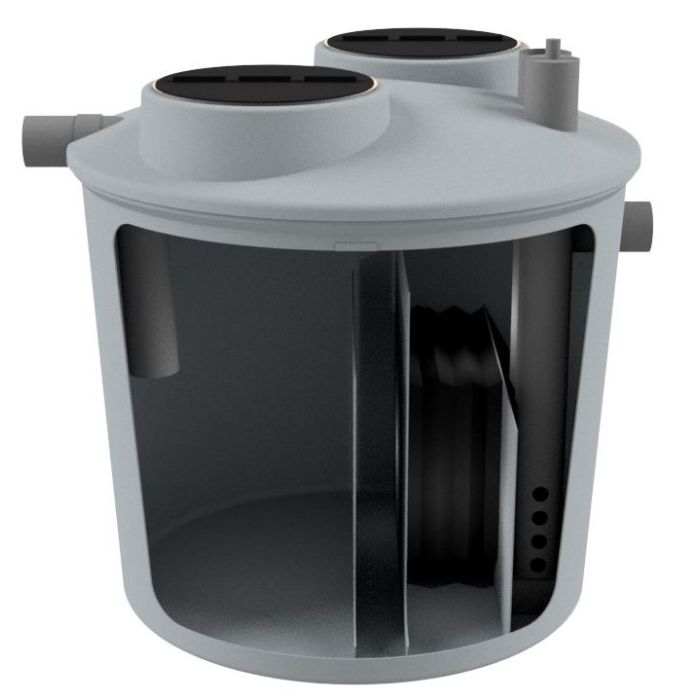

ACO light oil separator model OLEOLAM G-V NS20, for underground installation, with vertical design made in glass-reinforced plastic (GRP) in gray color. Separator Class I (5 ppm) according to UNE EN 858, nominal size 20 l/s, without integrated sludge trap, total capacity of light oils retention of 2480 l and a total volume of 4000 l. The separator is formed by Inlet and outlet connections DN200PVC. Include inlet deflector, removable coalescent filter and outlet with calibrated floater to 0,90gr/cm³ for automatic closing in case of light oil excess. With 1840 mm height, 2225 mm lenght and 2260 mm width, dispose of 2 access openings with . Total weight:180 kg.
Characteristics
- Light oil separator Clase I (5 ppm) acording to UNE EN 858.
- Vertical design made of glass-reinforced plastic (GRP)
- With coalescing filter and automatic closing system with a float set at 0.90 gr/cm³
- Easy to install and handle
Technical Specifications

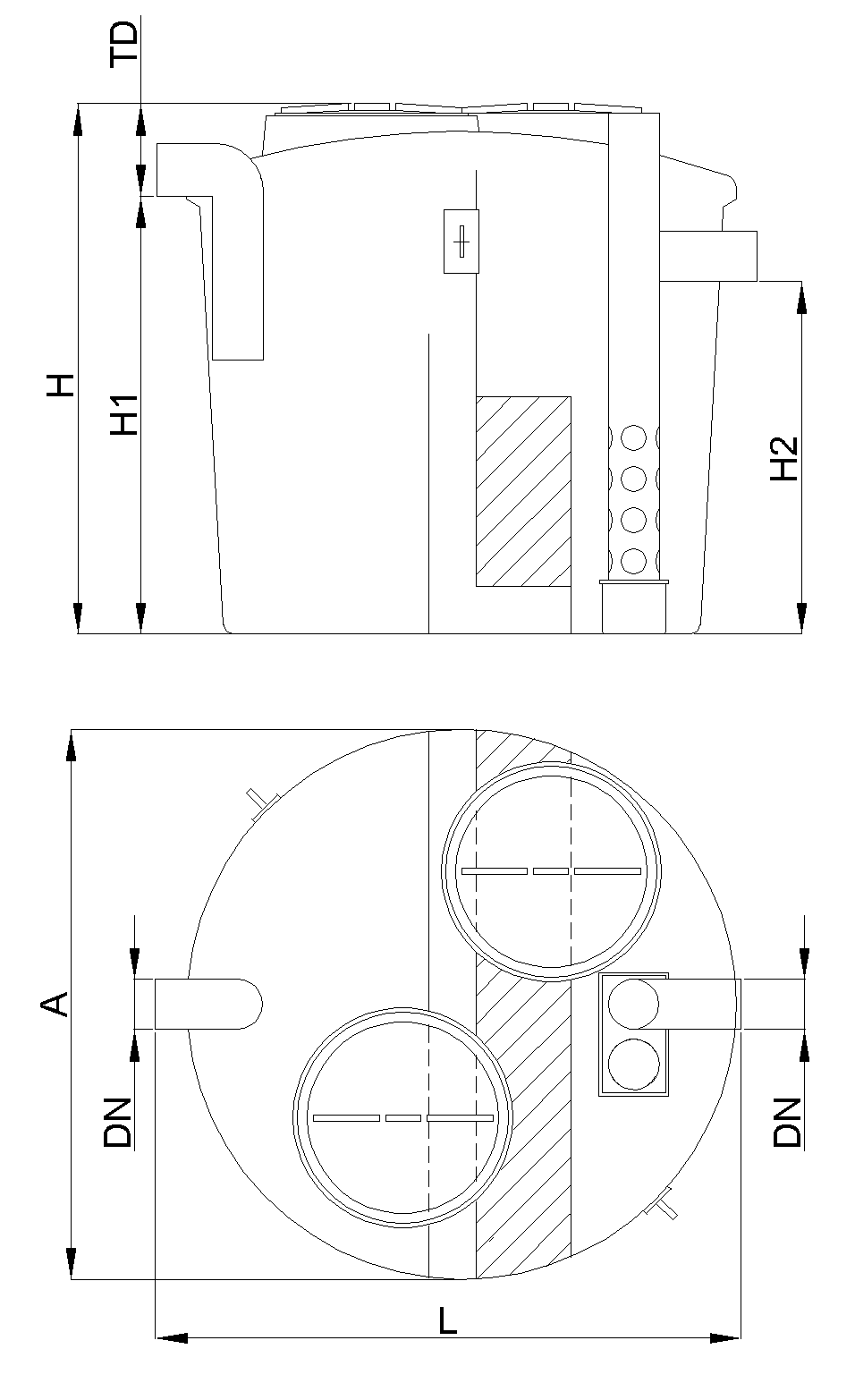

Dimensions
- Nominal size (l/s):
- 20
- Light oil capacity (l):
- 2480
- Total capacity (l):
- 4000
- Weight (kg):
- 180
- L (mm):
- 2225
- A (mm):
- 2260
- TD (mm):
- 367
- DN (mm):
- 200
- H (mm):
- 1840
- H1 (mm):
- 1320
- H2 (mm):
- 900
