Description
ACO light oil separator model OLEOLAM G-H NS1,5, for underground installation, with vertical design made in glass-reinforced plastic (GRP) in gray color. Separator Class I (5 ppm) according to UNE EN 858, nominal size 1,5 l/s, without integrated sludge trap, total capacity of light oils retention of 335 l and a total volume of 500 l. The separator is formed by Inlet and outlet connections DN110PVC. Include inlet deflector, removable coalescent filter and outlet with calibrated floater to 0,90gr/cm³ for automatic closing in case of light oil excess. With 717 mm height, 1433 mm lenght and 880 mm width, dispose of 1 access opening with (Ø567).. Total weight:46 kg.
Characteristics
- Light oil separator Clase I (5 ppm) acording to UNE EN 858.
- Horizontal design made of glass-reinforced plastic (GRP)
- With coalescing filter and automatic closing system with a float set at 0.90 gr/cm³
- Easy to install and handle
Technical Specifications

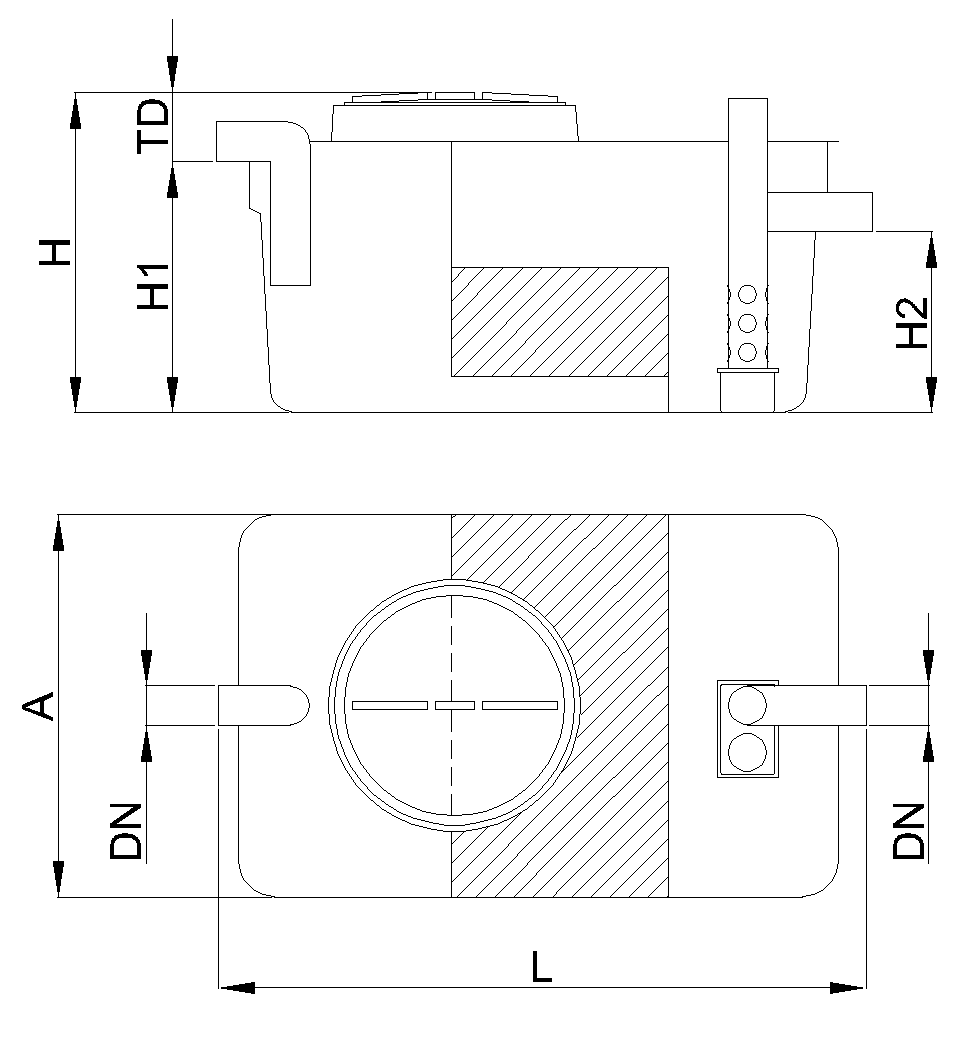

Dimensions
- Nominal size (l/s):
- 1,5
- Light oil capacity (l):
- 335
- Total capacity (l):
- 500
- Weight (kg):
- 46
- DN (mm):
- 110
- H (mm):
- 717
- H1 (mm):
- 525
- H2 (mm):
- 415
- L (mm):
- 1433
- A (mm):
- 880
- TD (mm):
- 192
- Manhole nº:
- Ø567
