Description
ACO SEPTIK V 12 septic tank for underground installation made of glass-reinforced plastic (GRP) by Hand-lay-up according to UNE-EN 976-1:1998 with a volume of 2200 liters. Anaerobic wastewater treatment capacity for 12 inhabitants equivalent to compliance with UNE EN 12566-1. Reduction of COD parameters by 60% and suspended solids (TSS) by 85%. Tank with dimensions of Ø1600 mm in diameter and Ø1600mm in length with an exterior finish with UV protection. With DN 110 mm inlet and outlet pipe made of PVC and 1 manhole 1xØ410mm in polypropylene. Weight: 85Kg.
Code:0PA01546.
Code:0PA01546.
Characteristics
- With a deflector device at the inlet and siphonic outlet, with internal parts made of PVC.
- Easy to install and handle.
- With UV protection.
- Easy maintenance.
- Septic tank in compliance with UNE EN 12566-1.
- Vertical design made of glass-reinforced plastic (GRP).
Technical Specifications

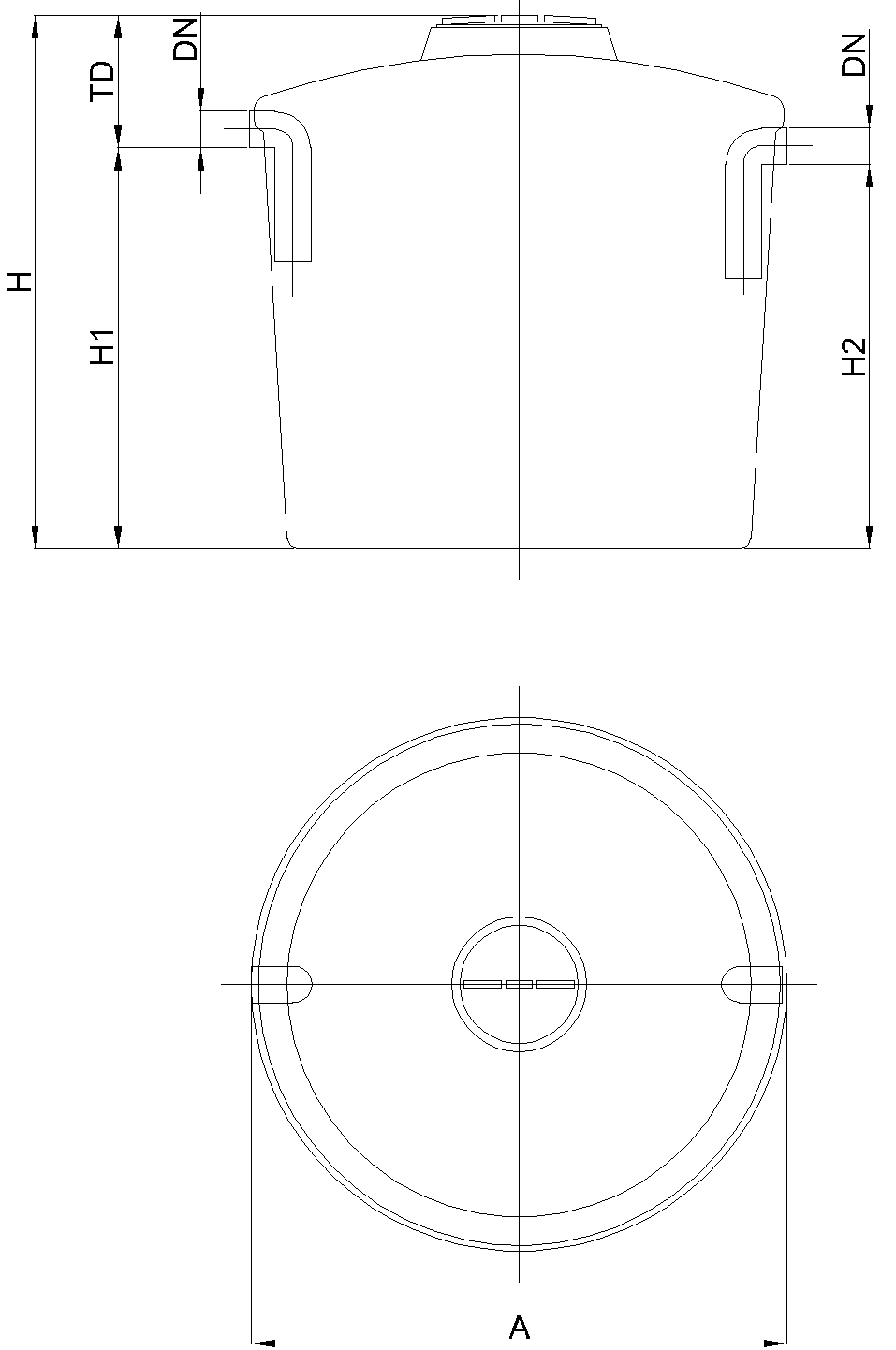

Dimensions
- H1 (mm):
- 1210
- H2 (mm):
- 1160
- TD (mm):
- 398
- DN (mm):
- 110
- Cover Nº:
- 1
- Weight (kg):
- 85
- COD (%):
- 60
- TSS (%):
- 85
- Population equivalent (PE):
- 12
- Total capacity (l):
- 2200
- A (mm):
- Ø1600
- H (mm):
- 1608
