Description
Rainwater collection tank type ACO RAINSAVE 4500 F for underground installation made of glass-reinforced plastic (GRP) by Hand-lay-up according to UNE-EN 16941-1:2019 with a volume of 4500 liters. Includes integrated filter to prevent the entry of particles larger than 0.55mm. Tank dimensions Ø1600mm in diameter and 2660mm in length. With external finish with UV protection. With inlet and outlet pipe DN 110mm made of PVC. 2 manholes diameter 1xØ410 1xØ567mm made of polypropylene and 1'' and 1/4 brass sleeve for the connection of a pump. Weight: 115Kg.
Code:0PA00501
Code:0PA00501
Characteristics
- Horizontal design made of glass-reinforced plastic (GRP).
- With separate compartments for sludge separation and water accumulation.
- Easy installation and handling.
- It includes a sleeve for the installation of a submersible irrigation pump.
- A UV or sodium hypochlorite rainwater treatment system can be retrofitted for water reuse for irrigation.
- Includes filter for rainwater from roof runoff to prevent 0.55 mm particles from entering the unit for easy maintenance.
Technical Specifications

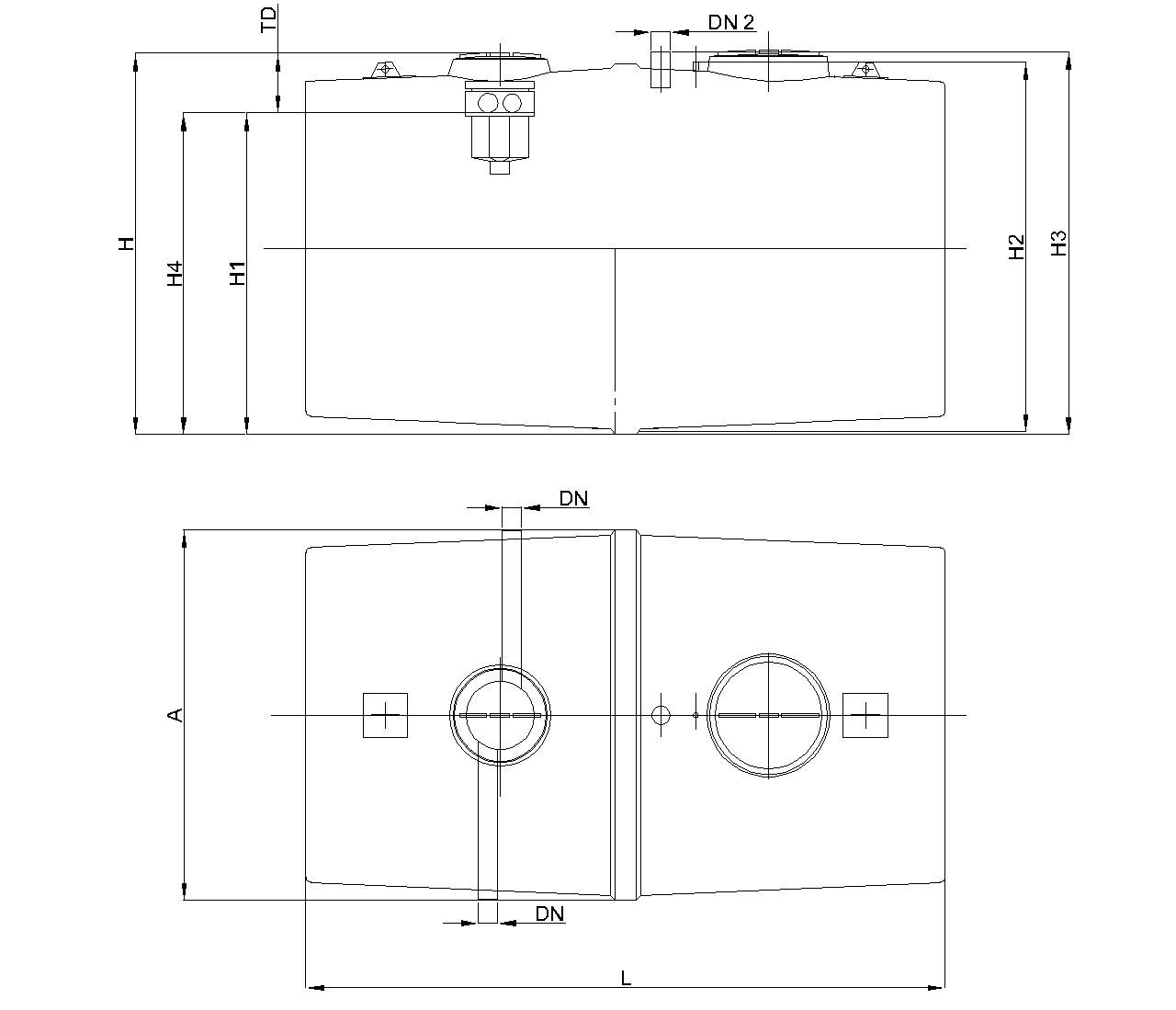

Dimensions
- H2 (mm):
- 1595
- H3 (mm):
- 1660
- H4 (mm):
- 1301
- TD (mm):
- 350
- DN (mm):
- 110
- DN 2 (mm):
- 160
- Manholes nº:
- 1xØ410 1xØ567
- A (mm):
- Ø1600
- H (mm):
- 1656
- H1 (mm):
- 1301
- Total volume (l):
- 4500
- L (mm):
- 2660
