Description
Fuel storage tank ACO STS 10 for surface installation and manufactured in glass-reinforced plastic (GRP) by filament winding and in accordance with the UNE-EN 53496 standard. Cistern in horizontal format with a volume of 10000 litres, 3700mm long, 2000mm wide and 2279mm high. With 1 connection inlet at 100, outlet at 50 and aeration at 100. With cover 1xØ600 made of GRP PN 10. Weight: 480 Kg.
Code:0PA00272
Code:0PA00272
Characteristics
- Horizontal design manufactured in glass-reinforced plastic (GRP)
- Fitted with an inner chemical barrier suitable for the storage of liquid petroleum fuels
Technical Specifications

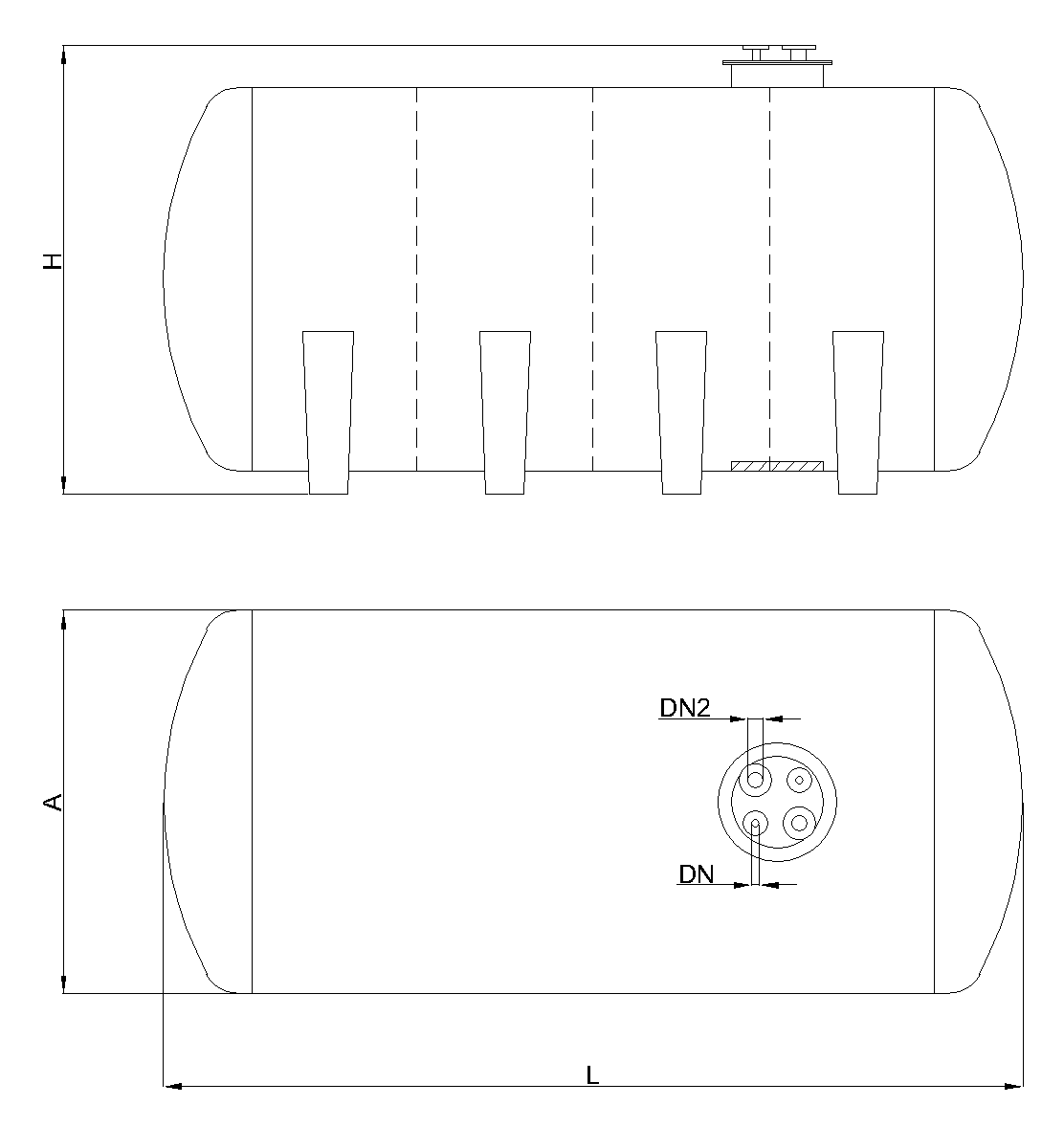

Dimensions
- DN2 (mm):
- 50
- Volume total (l):
- 10000
- Weight (kg):
- 480
- L (mm):
- 3700
- A (mm):
- 2000
- H (mm):
- 2279
- DN (mm):
- 100
