Description
Fuel storage tank ACO STD 25 for underground installation and manufactured in glass-reinforced plastic (GRP) by filament winding and in accordance with the UNE-EN 976-1:1998 standard. Cistern in horizontal format with a volume of 25000 litres, 5600mm long, 2500mm wide and 2674mm high. With 1 connection inlet at 100, outlet at 50 and aeration at 100. With cover 1xØ600 made of GRP PN 10. Weight: 1580 Kg.
Code:0PA00270
Code:0PA00270
Characteristics
- Horizontal design manufactured in glass-reinforced plastic (GRP)
- UV Protection: Material resistant to ultraviolet rays for increased durability and resistance
- Fitted with an inner chemical barrier suitable for the storage of liquid petroleum fuels
- The equipment incorporates a double-walled chamber that allows the detection of possible leaks
Technical Specifications

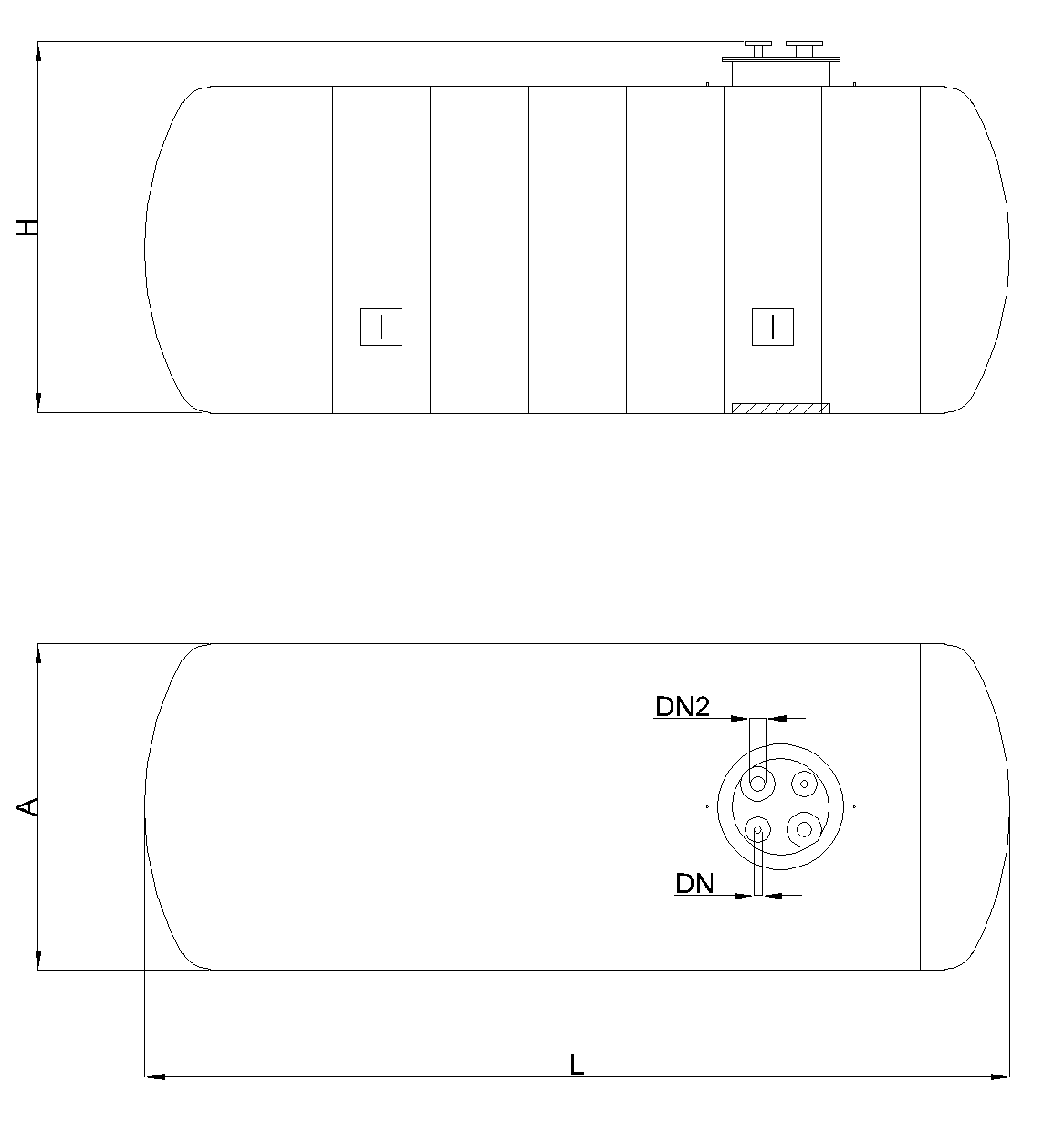

Dimensions
- Volume total (l):
- 25000
- 3- Stopcock:
- 4- T-shaped shunt:
- 5- Stopcock:
- 6- Connection pipe to the leak detector:
- Weight (kg):
- 1580
- L (mm):
- 5600
- A (mm):
- 2500
- H (mm):
- 2674
- DN (mm):
- 100
- DN2 (mm):
- 50
- :
- 1- Stopcock closed:
- 2- 0 to 1 bar manometer:
