Description

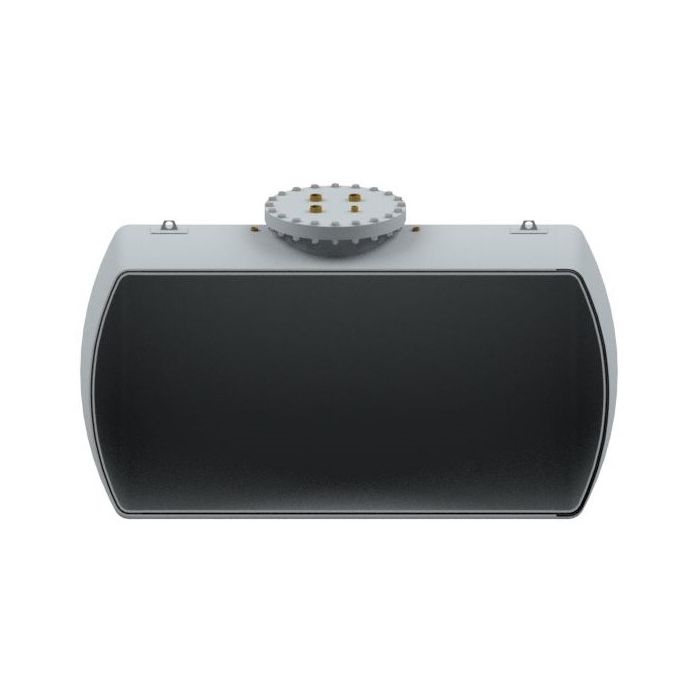

Fuel storage tank ACO STD 3 for underground installation and manufactured in glass-reinforced plastic (GRP) by filament winding and in accordance with the UNE-EN 976-1:1998 standard. Cistern in horizontal format with a volume of 3000 litres, 2700mm long, 1300mm wide and 1474mm high. With 1 connection inlet at 2'', outlet at 1'' and aeration at 2''. With cover 1xØ600 made of GRP PN 10. Weight: 250 Kg.
Code:0PA00268
Code:0PA00268
Characteristics
- Horizontal design manufactured in glass-reinforced plastic (GRP)
- Fitted with an inner chemical barrier suitable for the storage of liquid petroleum fuels
- The equipment incorporates a double-walled chamber that allows the detection of possible leaks
Technical Specifications
Dimensions
- Volume total (l):
- 3000
- Weight (kg):
- 250
- L (mm):
- 2700
- A (mm):
- 1300
- H (mm):
- 1474
- DN (mm):
- 2''
- DN2 (mm):
- 1''
- :
- 1- Stopcock closed:
- 2- 0 to 1 bar manometer:
- 3- Stopcock:
- 4- T-shaped shunt:
- 5- Stopcock:
- 6- Connection pipe to the leak detector:
