Description
ACO SEPTIK 7 septic tank for underground installation made of glass-reinforced plastic (GRP) by Hand-lay-up according to UNE-EN 976-1:1998 with a volume of 1400 liters. Anaerobic wastewater treatment capacity for 7 inhabitants equivalent to compliance with UNE EN 12566-1. Reduction of COD parameters by 60% and suspended solids (TSS) by 85%. Tank with dimensions of Ø1078 mm in diameter and 1860mm in length with an exterior finish with UV protection. With DN 110 mm inlet and outlet pipe made of PVC and 1 manholes 1xØ410mm in polypropylene. Weight: 35Kg.
Code:0PA00175.
Code:0PA00175.
Characteristics
- Septic tank in compliance with UNE EN 12566-1.
- Horizontal design made of glass-reinforced plastic (GRP).
- With a deflector device at the inlet and siphonic outlet, with internal parts made of PVC.
- Easy to install and handle.
- With UV protection.
- Easy maintenance.
Technical Specifications

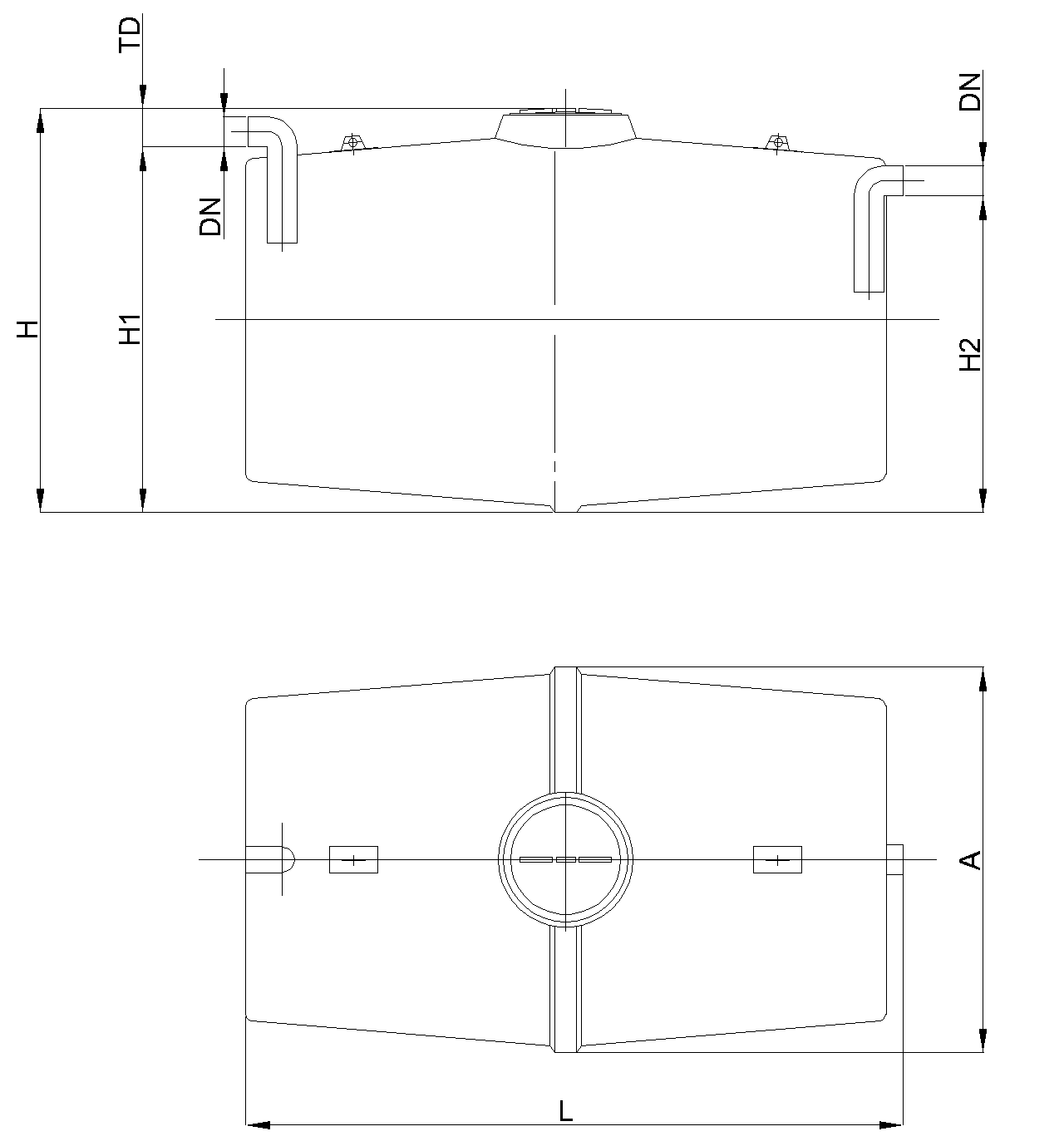

Dimensions
- Population equivalent (PE):
- 7
- Total capacity (l):
- 1400
- L (mm):
- 1860
- A (mm):
- Ø1078
- H (mm):
- 1180
- H1 (mm):
- 1070
- H2 (mm):
- 830
- TD (mm):
- 52
- DN (mm):
- 110
- Cover Nº:
- 1
- Weight (kg):
- 35
- COD (%):
- 60
- TSS (%):
- 85
