Description
Fuel storage tank ACO STE 1 for underground installation and manufactured in glass-reinforced plastic (GRP) by filament winding and in accordance with the UNE-EN 976-1:1998 standard. Cistern in horizontal format with a volume of 1000 litres, 1600mm long, 1000mm wide and 1174mm high. With 1 connection inlet at 2'', outlet at 1'' and aeration at 2''. With cover 1xØ600 made of GRP PN 10. Weight: 110 Kg.
Code:0PA00006
Code:0PA00006
Characteristics
- Horizontal design manufactured in glass-reinforced plastic (GRP)
- Fitted with an inner chemical barrier suitable for the storage of liquid petroleum fuels
Technical Specifications

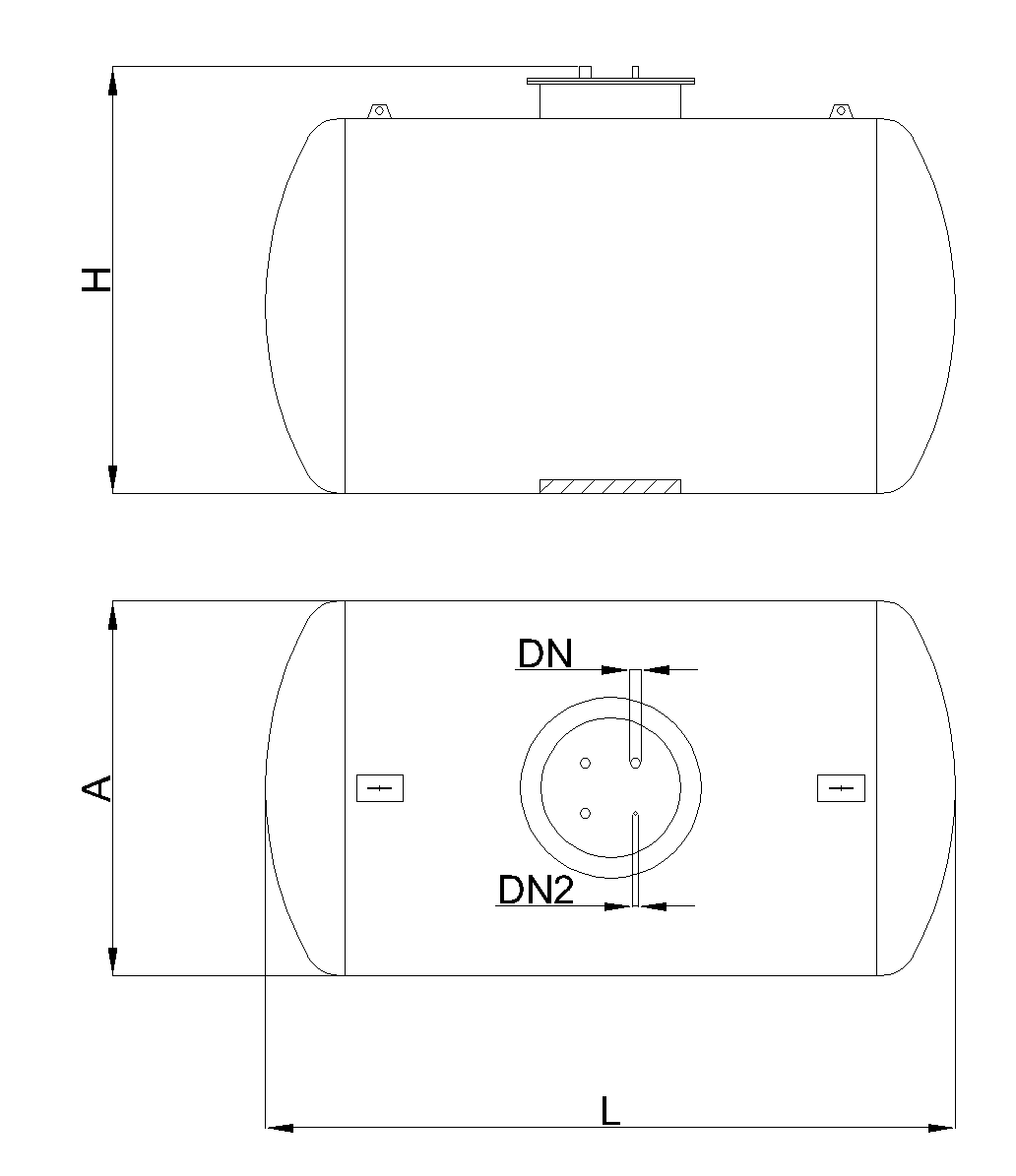

Dimensions
- L (mm):
- 1600
- A (mm):
- 1000
- H (mm):
- 1174
- DN (mm):
- 2''
- DN2 (mm):
- 1''
- Volume total (l):
- 1000
- Weight (kg):
- 110
