Description

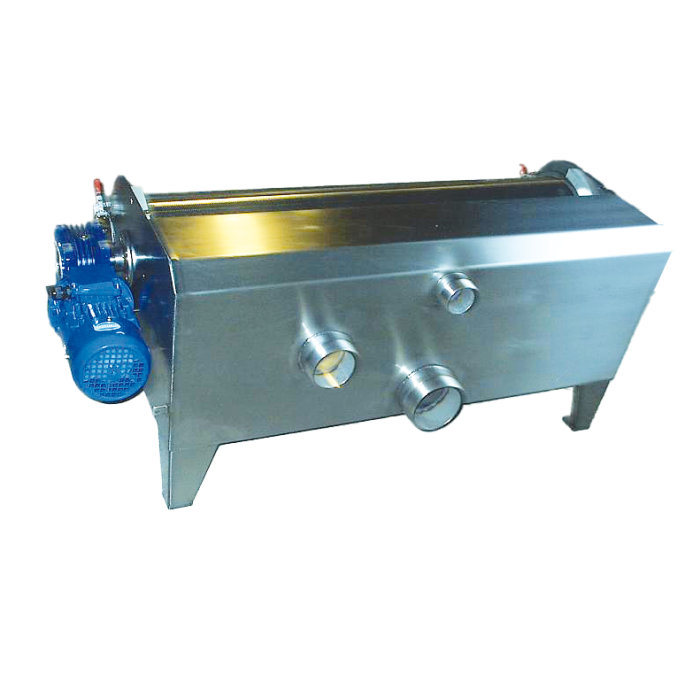

Rotary sieve type ACO TR 40 designed for solid-liquid separation using a continuous rotation system and made of stainless steel AISI 304. With a flow rate of 40m³/h and dimensions of 690mm in length, 686mm in width, and 628mm in height. Inlet DN125, outlet DN150, and cleaning connection 3/8''. Weight: 115Kg.
Code:0CV01179
Code:0CV01179
Characteristics
- Three-phase motor. 0,25kW
- Waste disposal system
- Fabricado en stainless steel AISI 304

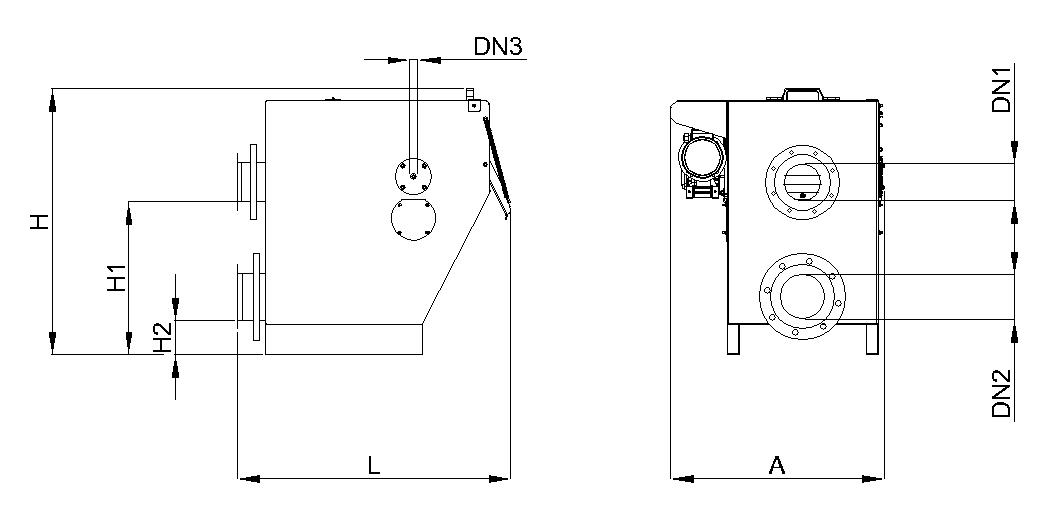

Technical Specifications
Dimensions
- H1 (mm):
- 378
- H2 (mm):
- 108
- DN1 (mm):
- 125
- DN2 (mm):
- 150
- DN3 (mm):
- 3/8''
- Weight (Kg):
- 115
- L (mm):
- 690
- A (mm):
- 686
- H (mm):
- 628
Technical datasheets
