LIGHT OIL SEP UNDERG. OLEOPATOR G-H NS300 NST DN500

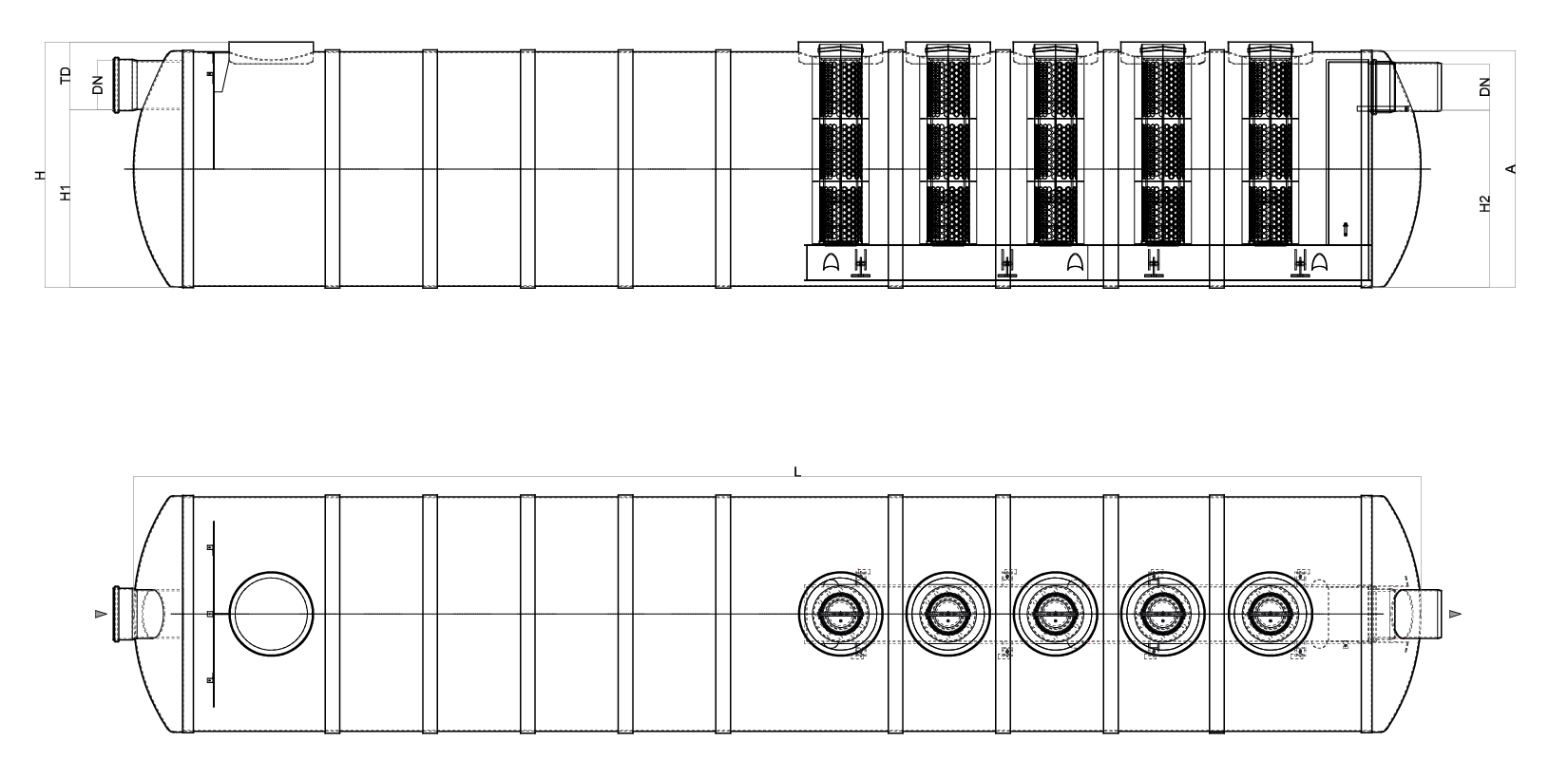

ACO light oil separator model OLEOPATOR G-H NS300 ST0, for underground installation, with horizontal design made in glass-reinforced plastic (GRP). Separator Class I (5 ppm) according to UNE EN 858, nominal size 300 l/s, without integrated sludge trap, total capacity of light oils retention of 13545 l and a total volume of 46482 l. The separator is formed by Inlet and outlet connections DN500 in high density polyethylene (HDPE). Include inlet deflector, removable coalescent filter and outlet with calibrated floater to 0,90gr/cm³ for automatic closing in case of light oil excess. With 2500 mm height, 13180 mm lenght and Ø2402 mm width, dispose of 6 access openings with . Total weight:3400 kg.
