LIGHT OIL SEP UNDERG. OLEOPATOR G-H NS250-ST25000 DN500

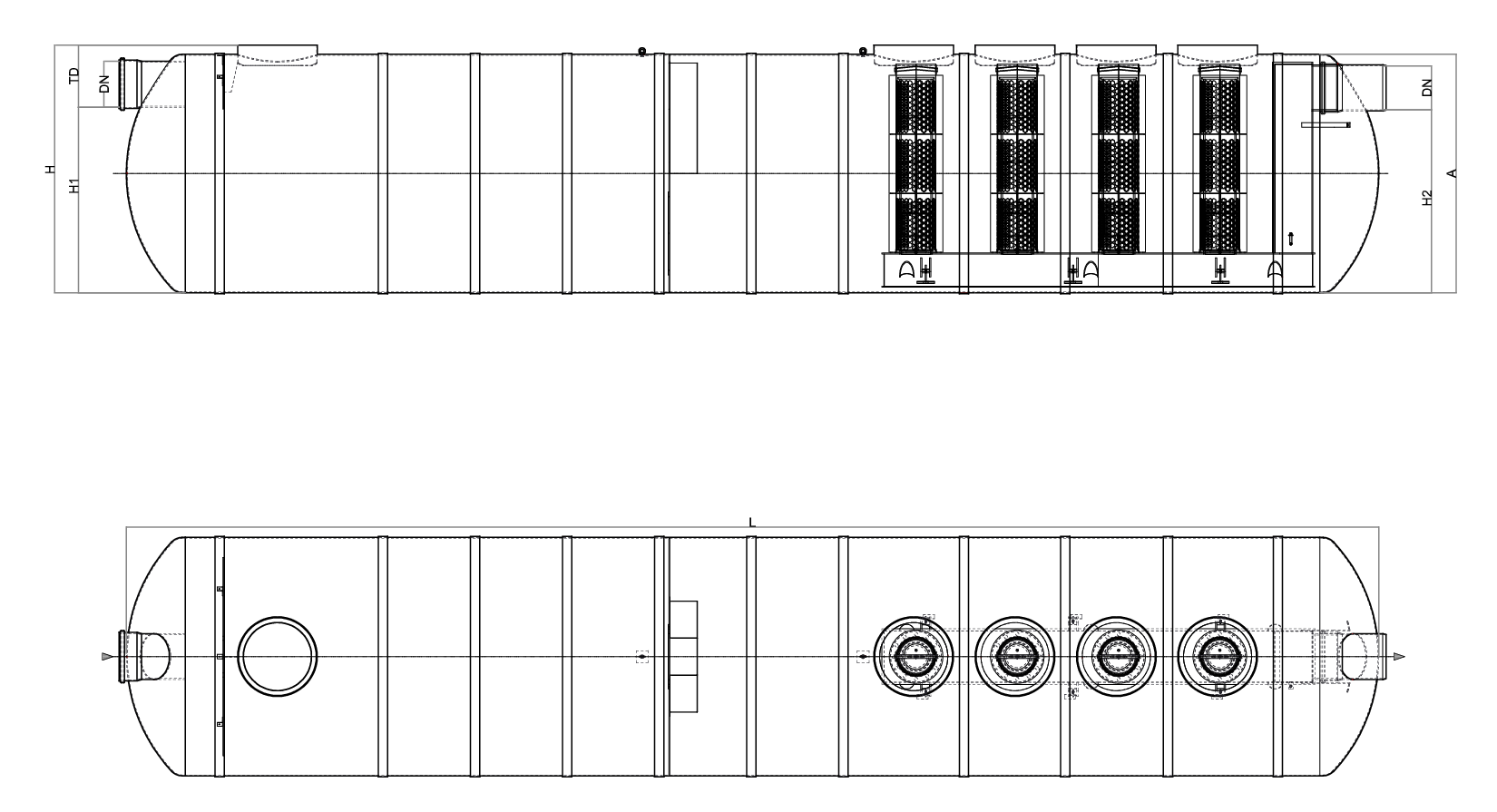

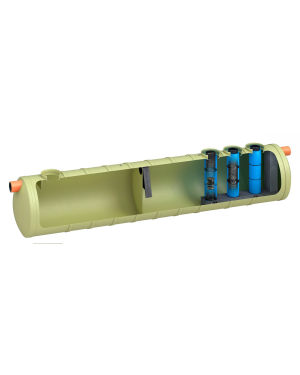

ACO light oil separator model OLEOPATOR G-H NS250 ST25000, for underground installation, with horizontal design made in glass-reinforced plastic (GRP). Separator Class I (5 ppm) according to UNE EN 858, nominal size 250 l/s, with integrated sludge trap of 25000 l, total capacity of light oils retention of 8433 l and a total volume of 61106 l. The separator is formed by Inlet and outlet connections DN500 in high density polyethylene (HDPE). Include inlet deflector, removable coalescent filter and outlet with calibrated floater to 0,90gr/cm³ for automatic closing in case of light oil excess. With 2690 mm height, 13600 mm lenght and Ø2600 mm width, dispose of 5 access openings with . Total weight:3300 kg.
