CNL MD 200 5.0 1000MM H290 D400

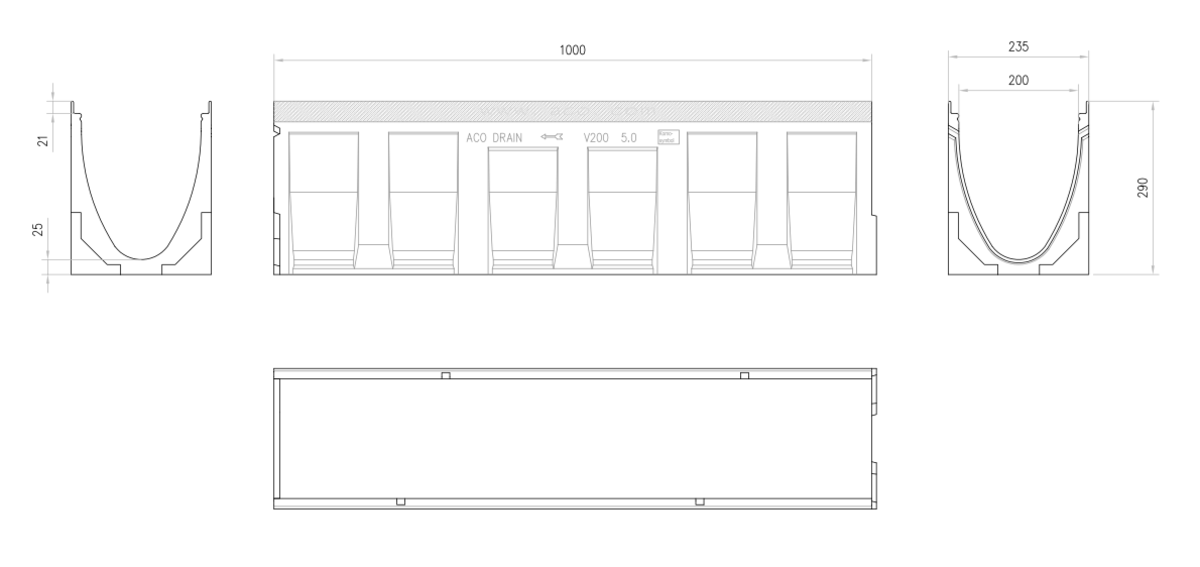

Drainage channel type ACO MULTIDRAIN 200 5.0 H290 in polymer concrete, load class D400 according to EN-1433. Without grating. With locking system by Drainlock® over galvanised edge rails integrated on channel body wall. With internal section 350 cm² and V-shape optimized transverse section. Total length 1000 mm, overall heigth 290 mm and overall width 235 mm. Nominal width 200 mm. Weight: 41,3 kg.
