CNL MD 150 20.0 1000MM H310 D400

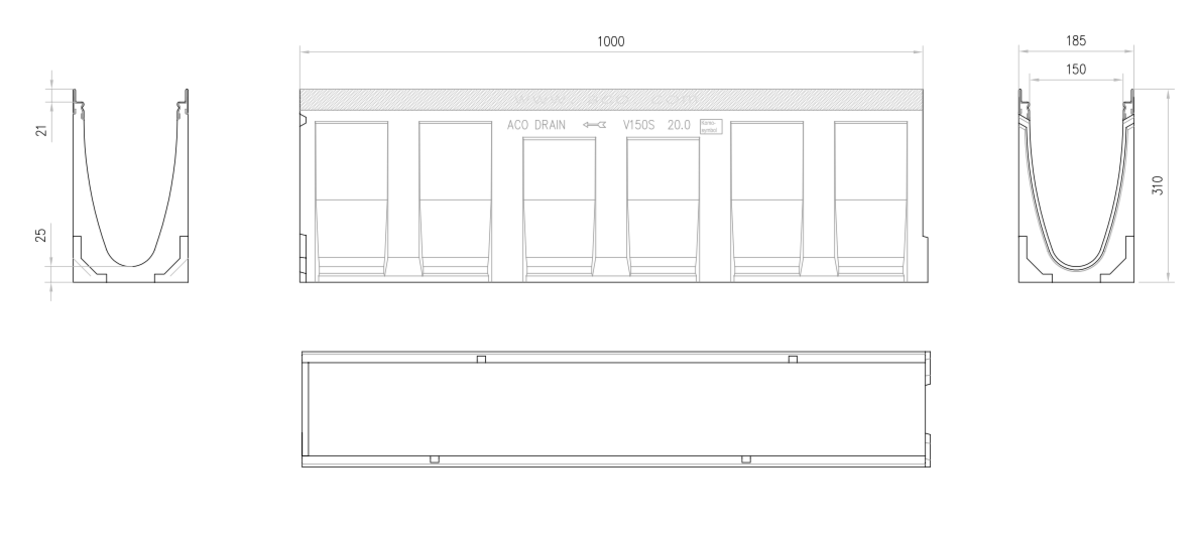

Drainage channel type ACO MULTIDRAIN 150 20.0 H310 in polymer concrete, load class D400 according to EN-1433. Without grating. With locking system by Drainlock® over galvanised edge rails integrated on channel body wall. With internal section 298 cm² and V-shape optimized transverse section. Total length 1000 mm, overall heigth 310 mm and overall width 185 mm. Nominal width 150 mm. Weight: 38,4 kg.
