Description

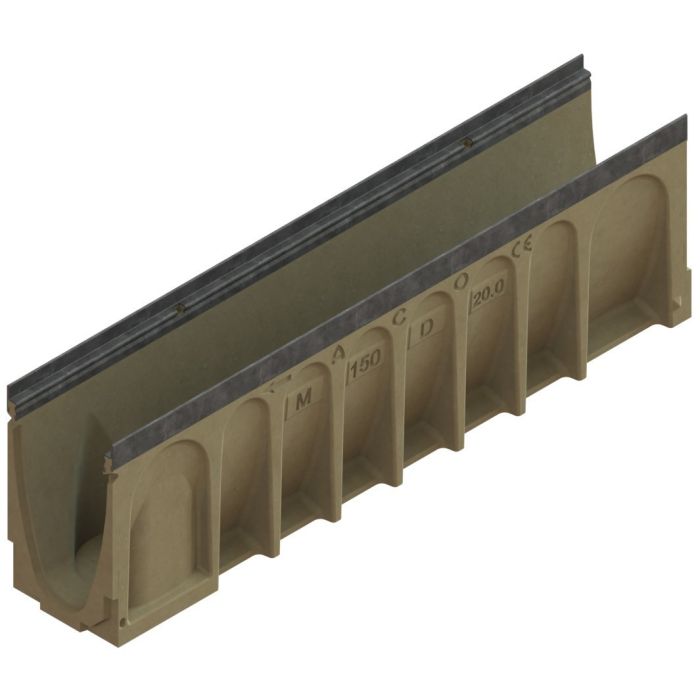

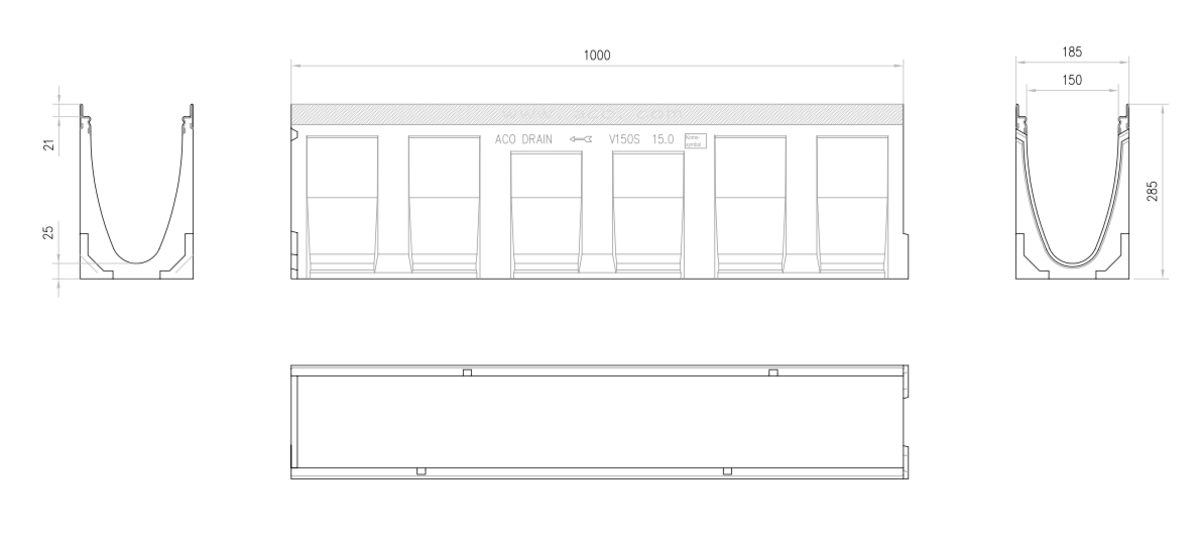

Drainage channel type ACO MULTIDRAIN 150 15.0 H285 in polymer concrete, load class D400 according to EN-1433. Without grating. With locking system by Drainlock® over galvanised edge rails integrated on channel body wall. With internal section 268 cm² and V-shape optimized transverse section. Total length 1000 mm, overall heigth 285 mm and overall width 185 mm. Nominal width 150 mm. Weight: 36,8 kg.
Technical Specifications
Dimensions
- Model:
- MULTIDRAIN 150 15.0
- Length (mm):
- 1000
- Width (mm):
- 185
- Height (mm):
- 285
- Weight (kg):
- 36,8
- Load class:
- D400
- Flow rate (l/s):
- 16,8
- Internal section (cm²):
- 268
- :
