CNL MD 100 15.0 1000MM H225 D400

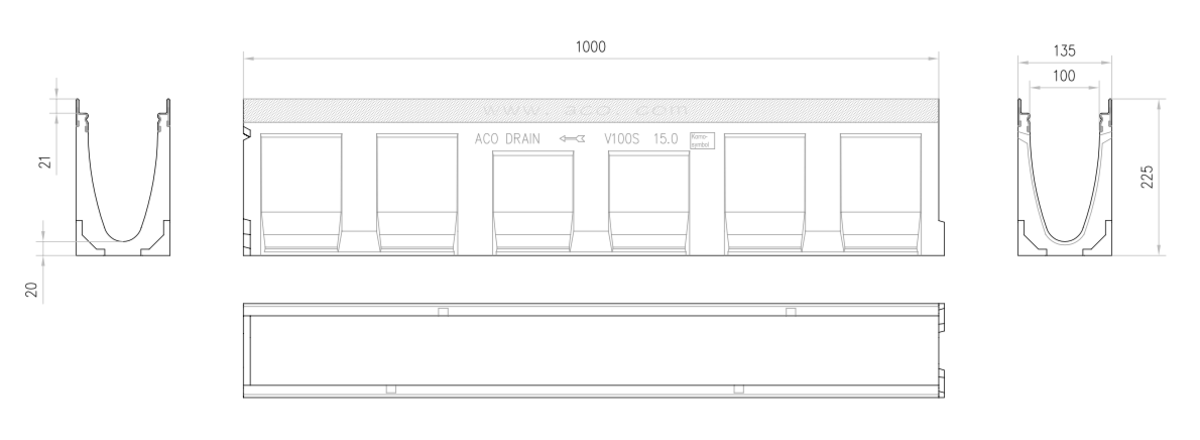

Drainage channel type ACO MULTIDRAIN 100 15.0 H225 in polymer concrete, load class D400 according to EN-1433. Without grating. With locking system by Drainlock® over galvanised edge rails integrated on channel body wall. With internal section 140 cm² and V-shape optimized transverse section. Total length 1000 mm, overall heigth 225 mm and overall width 135 mm. Nominal width 100 mm. Weight: 21 kg.
