Description

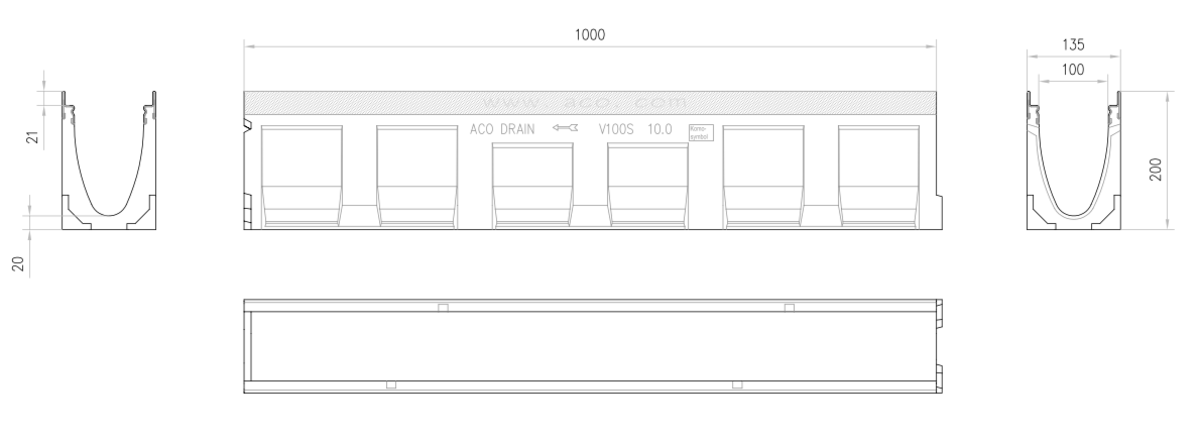

Drainage channel type ACO MULTIDRAIN 100 10.0 H200 in polymer concrete, load class D400 according to EN-1433. Without grating. With locking system by Drainlock® over galvanised edge rails integrated on channel body wall. With internal section 120 cm² and V-shape optimized transverse section. Total length 1000 mm, overall heigth 200 mm and overall width 135 mm. Nominal width 100 mm. Weight: 21 kg.
Technical Specifications
Dimensions
- Model:
- MULTIDRAIN 100 10.0
- Length (mm):
- 1000
- Width (mm):
- 135
- Height (mm):
- 200
- Weight (kg):
- 21
- Load class:
- D400
- Flow rate (l/s):
- 5,8
- Internal section (cm²):
- 120
- :
