Description
Grate type mesh in stainless steel AISI 304, with load class B125 in accordance with EN1433, for surface drainage channels type ACO XTRALINE 200. Locking system by bolt and bar. Intake area of 1600 cm²/m. Lenght overall 998 mm, external height 1,8 mm and external width 254 mm. Unit weight: 5,2 kg.
Technical Specifications

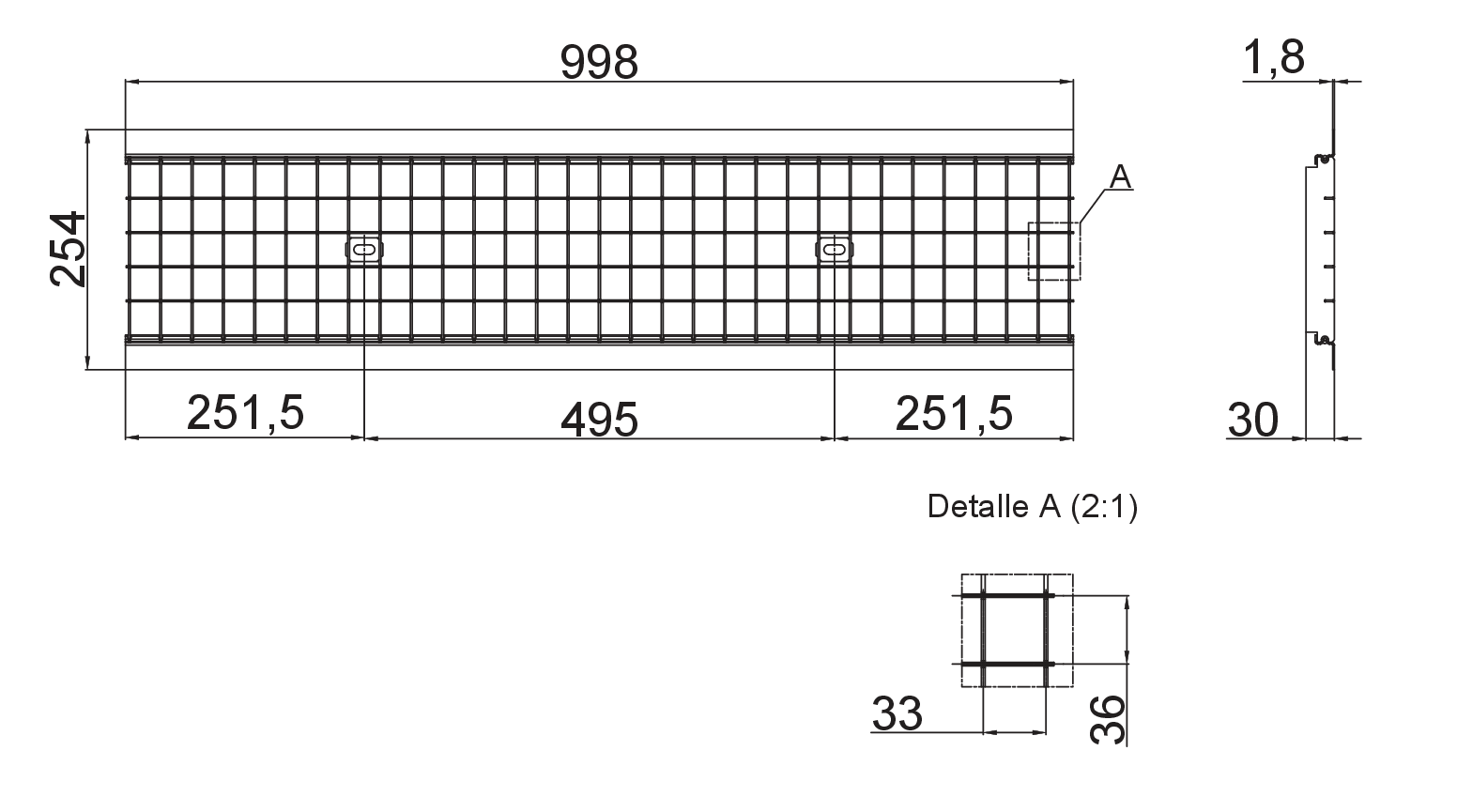

Dimensions
- :
- :
- :
- :
- :
- :
- :
