Description

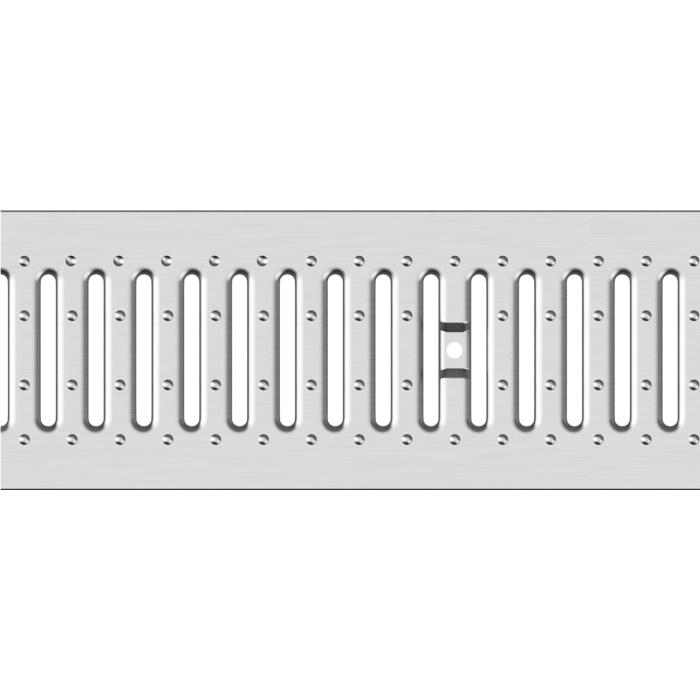

Grate type slotted in galvanised steel, with load class A15 in accordance with EN1433, for surface drainage channels type ACO XTRALINE 100. Locking system by bolt and bar. Intake area of 268 cm²/m. Lenght overall 998 mm, external height 2,5 mm and external width 154 mm. Unit weight: 1,80 kg.
Technical Specifications

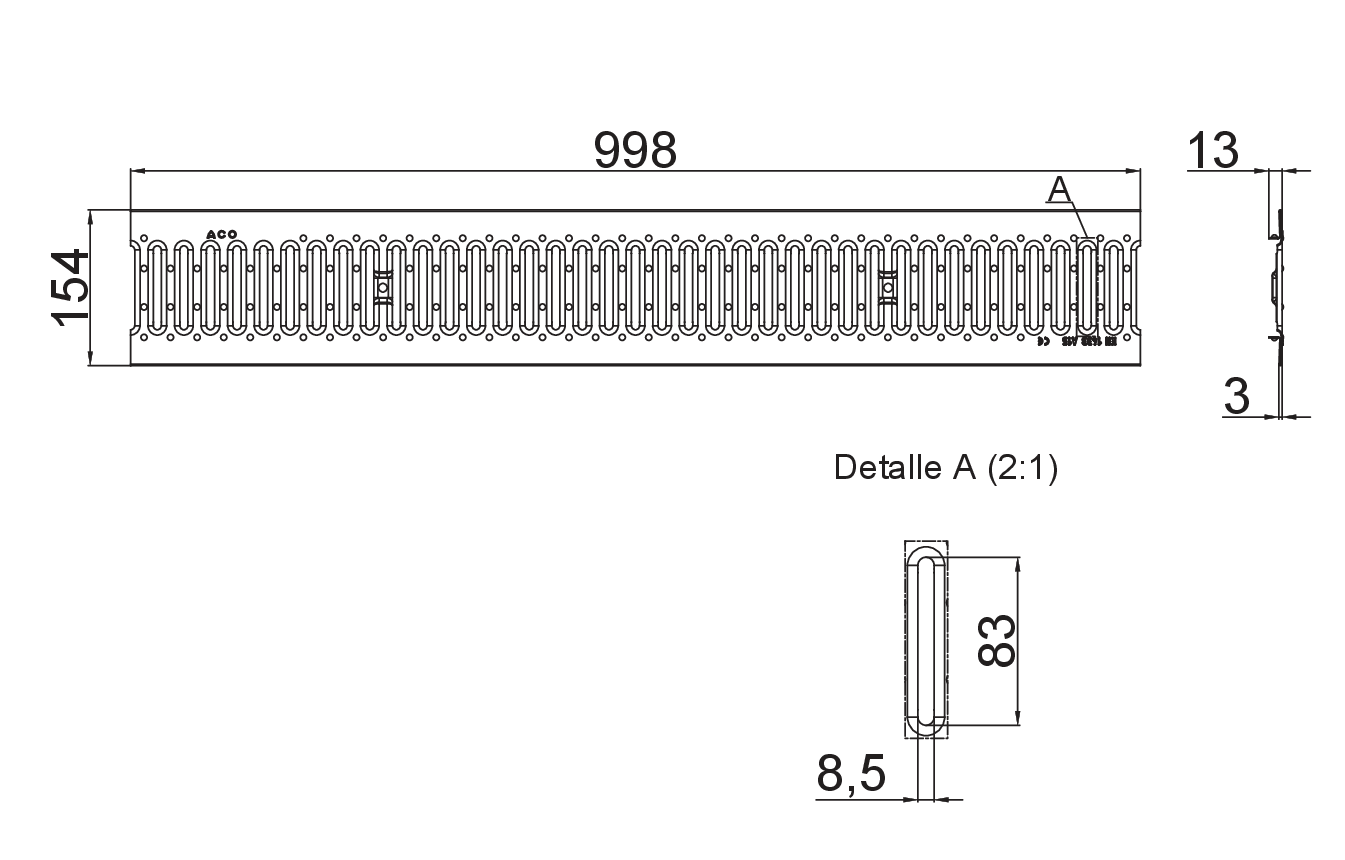

Dimensions
- :
- :
- :
- :
- :
- :
- :
Technical datasheets
