Description

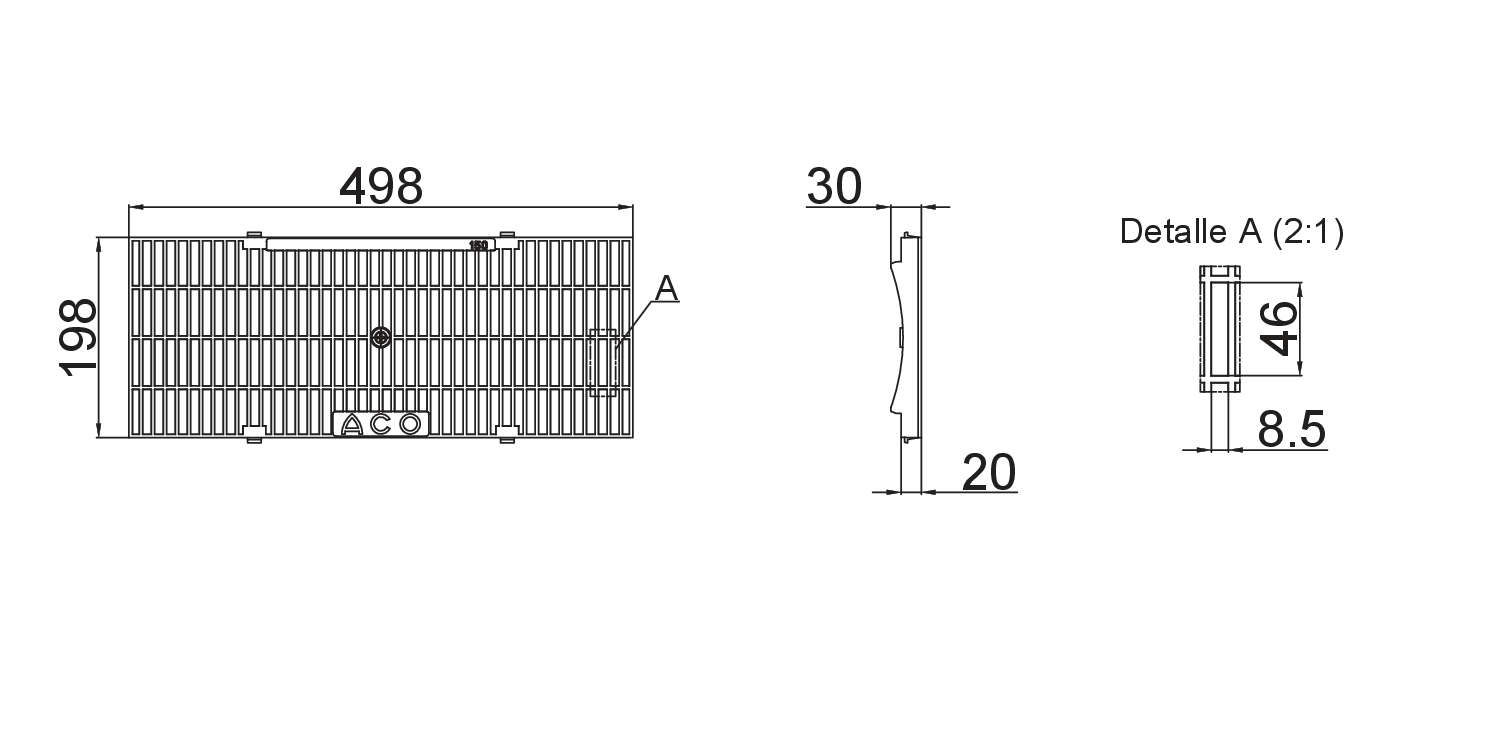

Grate type heelsafe mesh in high-density polyethylene, with load class pedestrian, for surface drainage channels type ACO XTRALINE C 150. Locking system by clip. Intake area of 1160 cm²/m. Lenght overall 498 mm, external height 20 mm and external width 198 mm. Unit weight: 0,68 kg.
Technical Specifications
Dimensions
- Width overall (mm):
- 198
- Total height (mm):
- 20
- Weight (kg):
- 0,68
- Intake area (cm²/m):
- 1160
- Load Class:
- 1,5KN
- Model:
- XTRALINE C 150
- Length (mm):
- 498
Technical datasheets
