Description

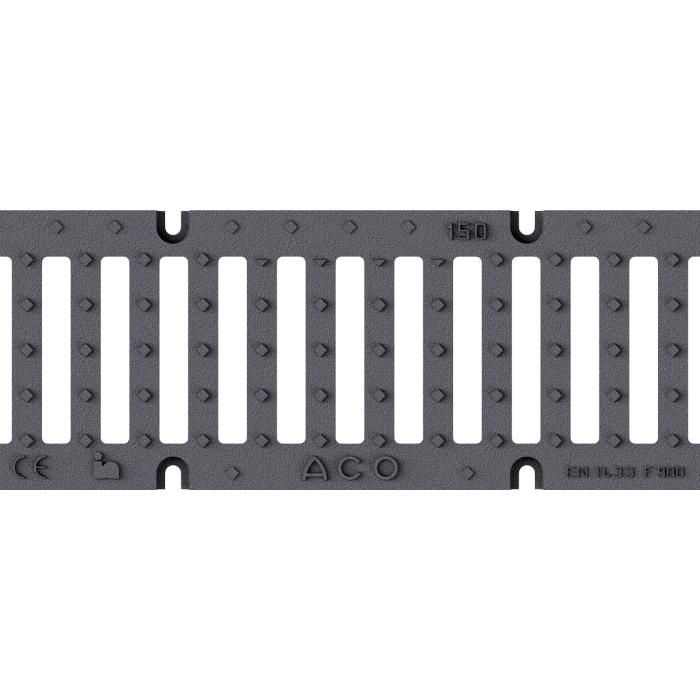

Grate type slotted in cast iron, with load class F900 in accordance with EN1433, for surface drainage channels type ACO XTRALINE G/B 150. Locking system by bolts. Intake area of 312 cm²/m. Lenght overall 498 mm, external height 25 mm and external width 198 mm. Unit weight: 8,50 kg.
Technical Specifications

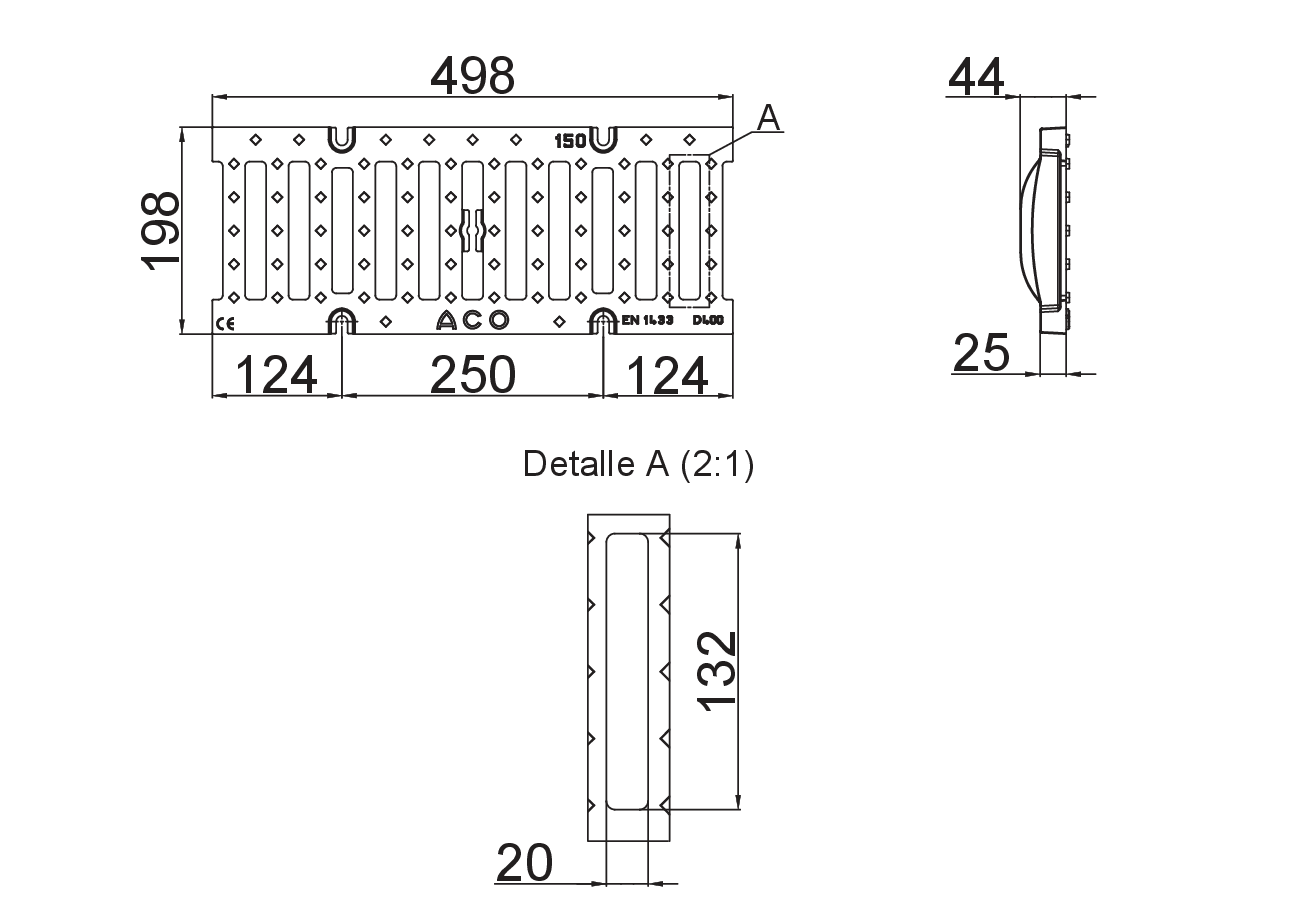

Dimensions
- Model:
- XTRALINE G/B 150
- Length (mm):
- 498
- Width overall (mm):
- 198
- Total height (mm):
- 25
- Weight (kg):
- 8,50
- Intake area (cm²/m):
- 312
- Load Class:
- F900
