Description

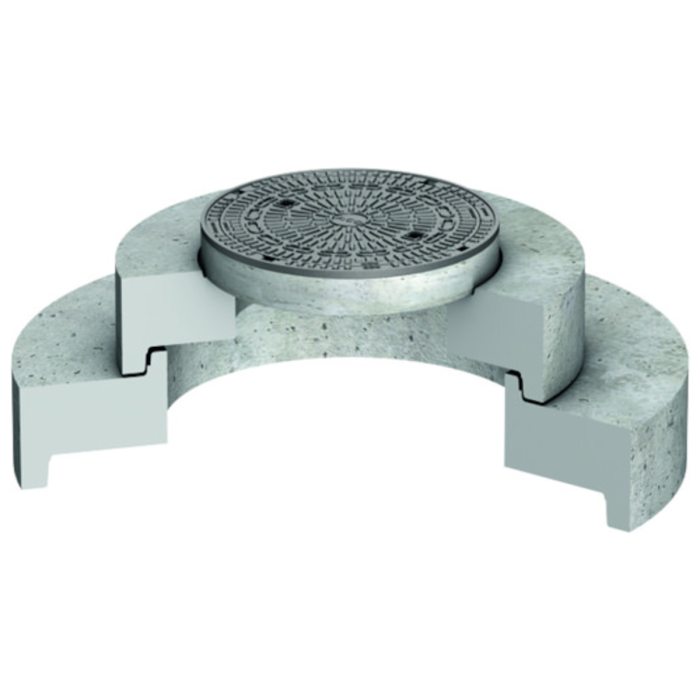

Cover type ajustable in cast iron with long rising piece in reinforced concrete with external height 330 mm and dimension Te 330 mm. With 1cover load class D400 according to EN124. Weight: 484 kg.
Technical Specifications

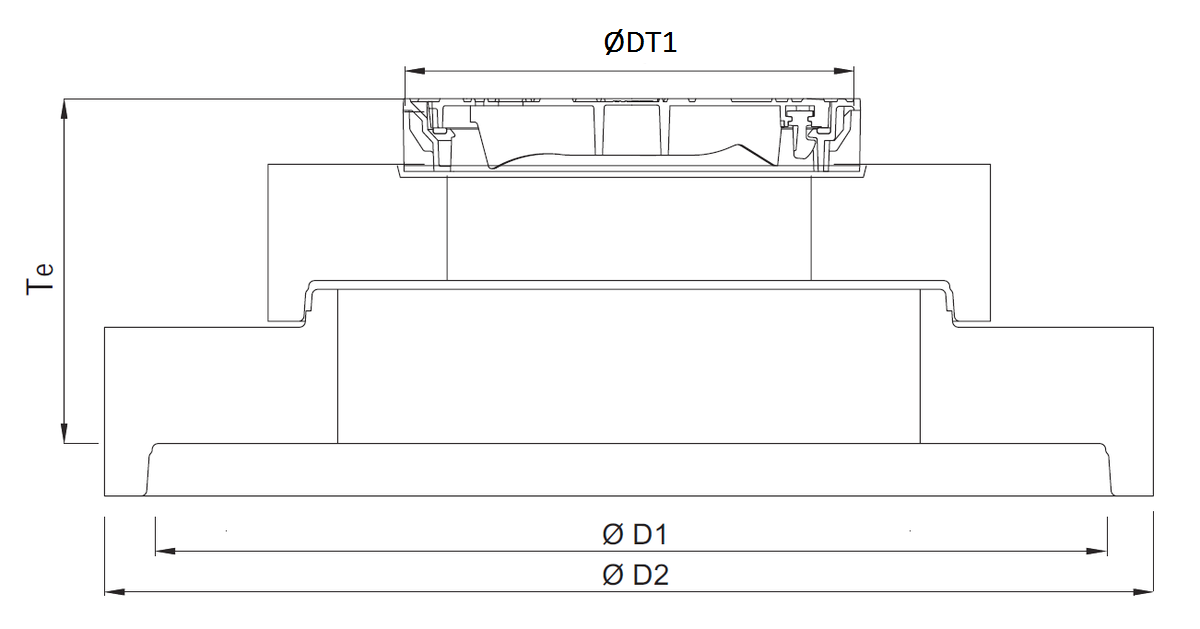

Dimensions
- Cover material:
- cast iron
- Rising piece:
- reinforced concrete
- ØD1 (mm):
- 2700
- ØD2 (mm):
- 3000
- Covers (mm):
- 1xØ600
- H (mm):
- 330
- Te min (mm):
- 330
- Load class:
- D400
- Weight (kg):
- 484
- Cover color:
- black
