LIGHT OIL SEP UNDERG. OLEOPASS C NS10/100-ST2000 DN400

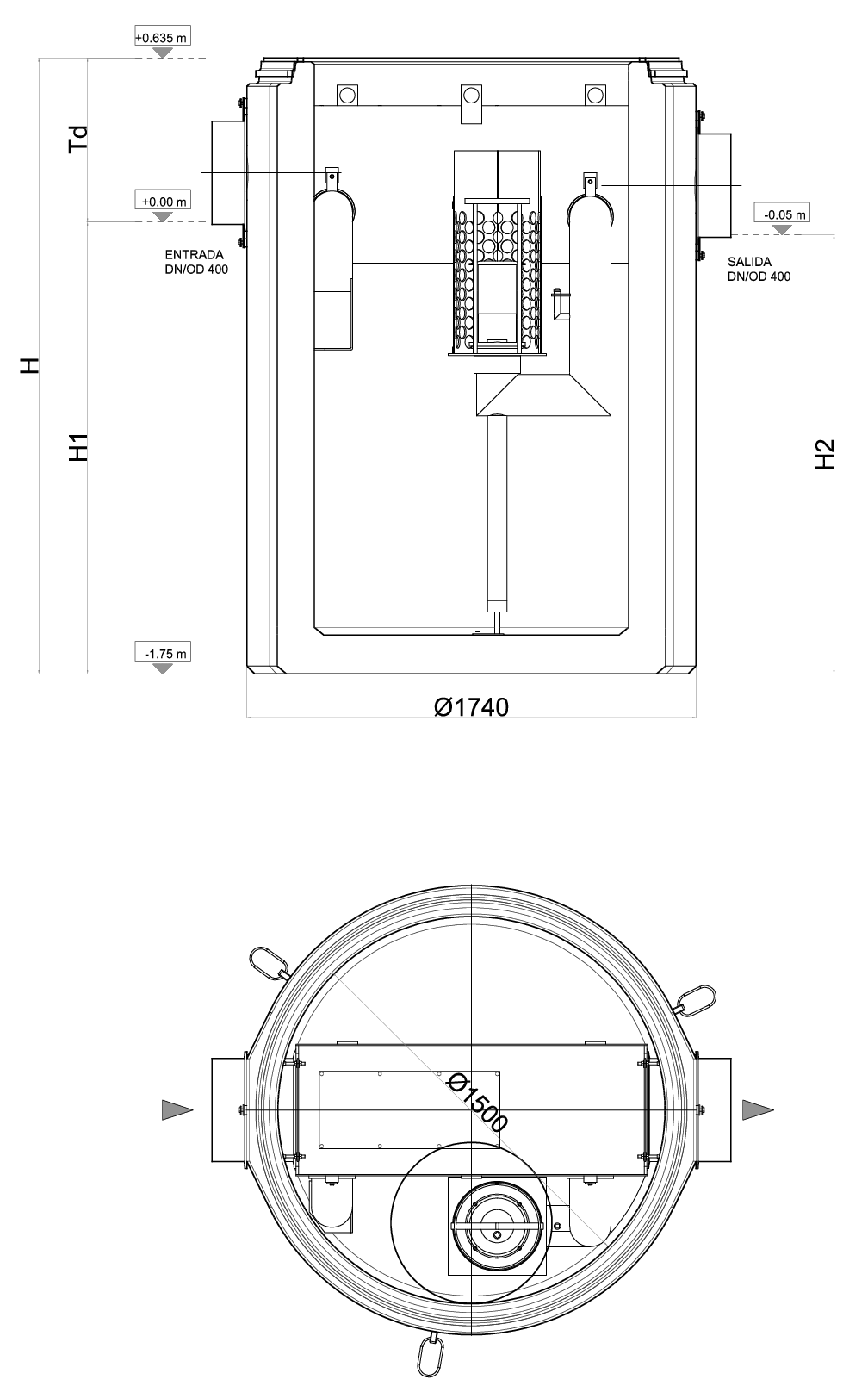

ACO light oil separator model OLEOPASS C NS10/100 ST2000, for underground installation, with vertical design made in reinforced concrete monolithic, antifloatability with inner coating. Separator Class I (5 ppm) according to UNE EN 858, nominal size 10 l/s and with By-pass sistem interno for a maximun flow rate of 100 l/s, with integrated sludge trap of 2000 l, total capacity of light oils retention of 330 l and a total volume of 2783 l. The separator is formed by Inlet and outlet connections DN400 in high density polyethylene (HDPE). Include inlet deflector and outlet with calibrated floater to 0,90gr/cm³ for automatic closing in case of light oil excess. With 2515 mm height and Ø1800 mm diameter Total weight:5782 kg.
