LIGHT OIL SEP UNDERG. OLEOPASS C NS30/300-ST3000 DN500

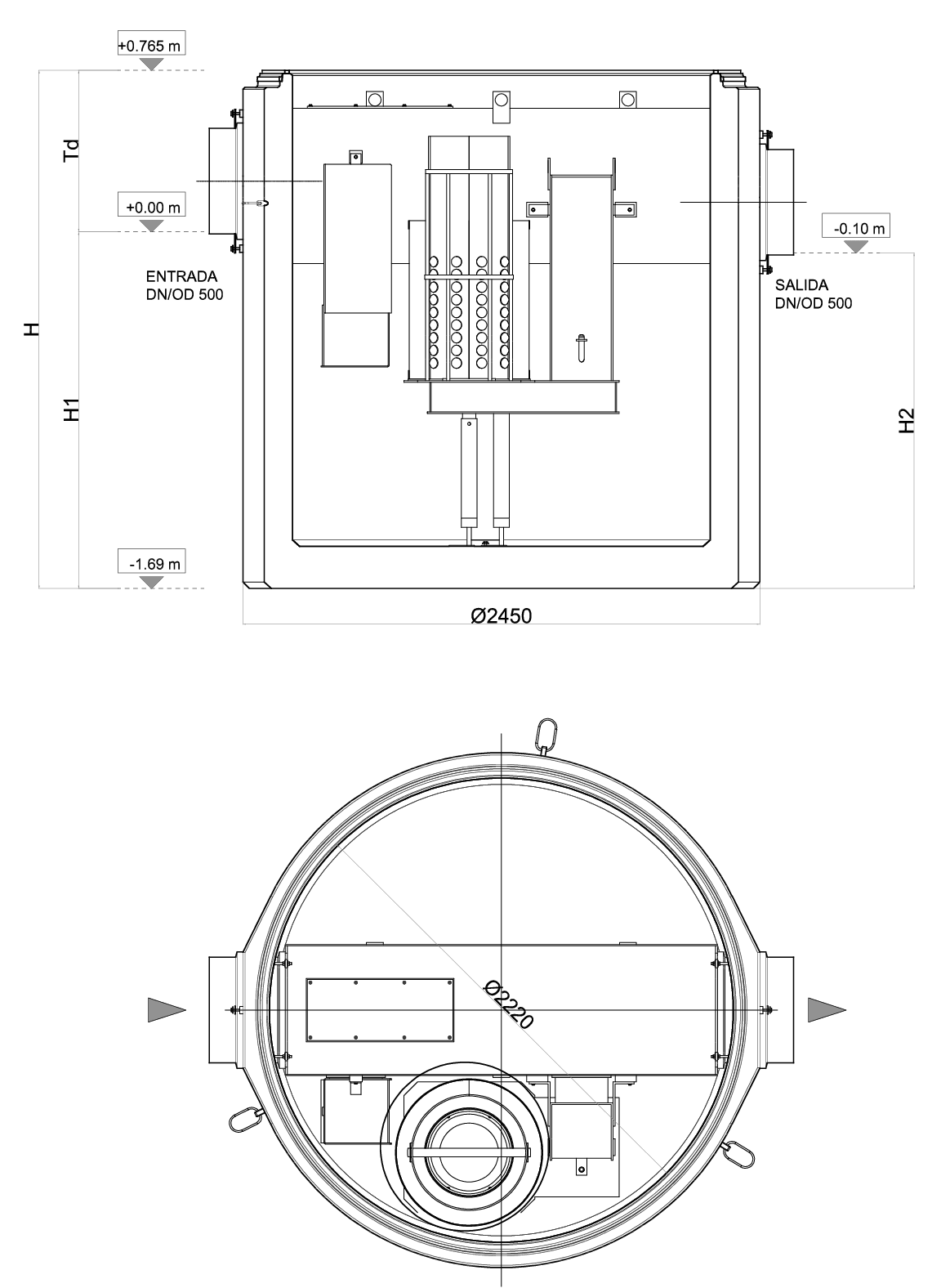

ACO light oil separator model OLEOPASS C NS30/300 ST3000, for underground installation, with vertical design made in reinforced concrete monolithic, antifloatability with inner coating. Separator Class I (5 ppm) according to UNE EN 858, nominal size 30 l/s and with By-pass sistem interno for a maximun flow rate of 300 l/s, with integrated sludge trap of 3000 l, total capacity of light oils retention of 1253 l and a total volume of 5284 l. The separator is formed by Inlet and outlet connections DN500 in high density polyethylene (HDPE). Include inlet deflector and outlet with calibrated floater to 0,90gr/cm³ for automatic closing in case of light oil excess. With 2455 mm height and Ø2440 mm diameter Total weight:7016 kg.
