Description

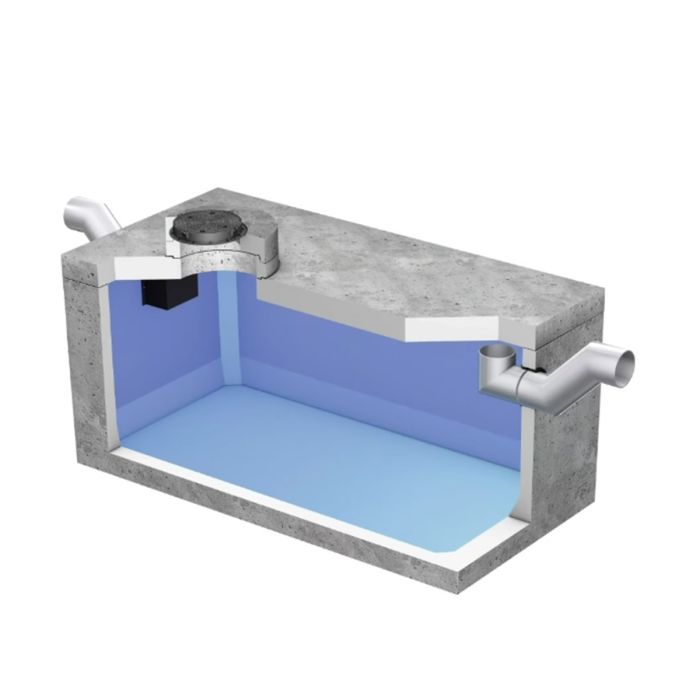

ACO separador Sediment decantation separator model DECANTADOR-C PR ST13000 for underground installation, with horizontal design made in reinforced concrete.For nominal flow of 65 l/s.With a sludge capacity of 13000 l. The solution has DN315/300 inlet and outlet connections. Dimensions: 5040 mm length, 2440 mm width and 2900 mm height. Includes upper part made of reinforced concrete with 1 cover in cast iron, type A1 with dimensions 1xØ600 mm. Possibility of adjusting the height with reinforced concrete rising pices.. Weight: 26800 kg.
Technical Specifications

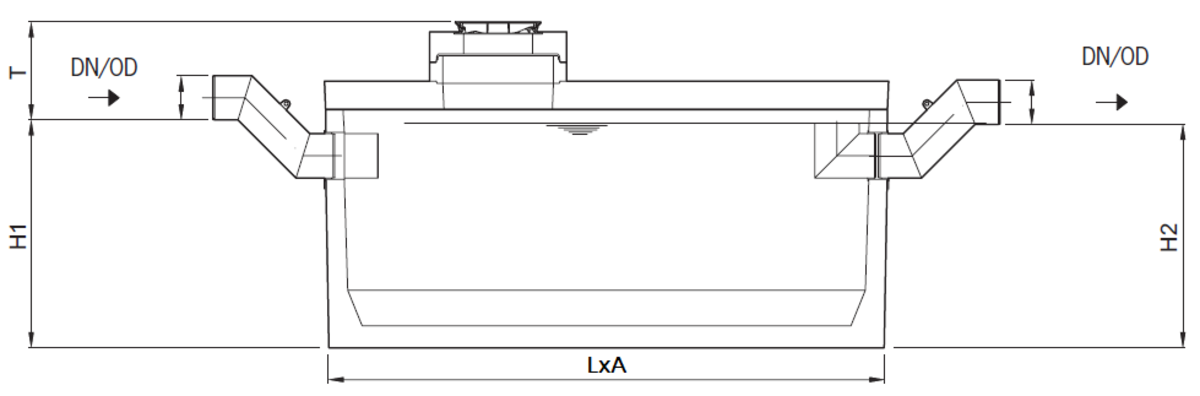

Dimensions 1
- Model:
- DECANTADOR-C PR ST13000
- Nominal size (l/s):
- 65
- Sediment capacity (l):
- 13000
- Weight (kg):
- 26800
- L (mm):
- 5040
- A (mm):
- 2440
- H (mm):
- 2900
- H1 (mm):
- 1540
- H2 (mm):
- 1520
- DN (mm):
- 315/300
- Td (mm):
- 1360
- T max. (mm):
- 5610
- Access nº:
- 1
Dimensions 2
- Cover article:
- 00728000
