GULLY FAT AISI304 EG150 HF TELESCOPICO 150X150MM CERAMIC TELA OUT/V DN75 W/BASKET W/GR PERF W/FIX
00447211
Project: Consult
Description

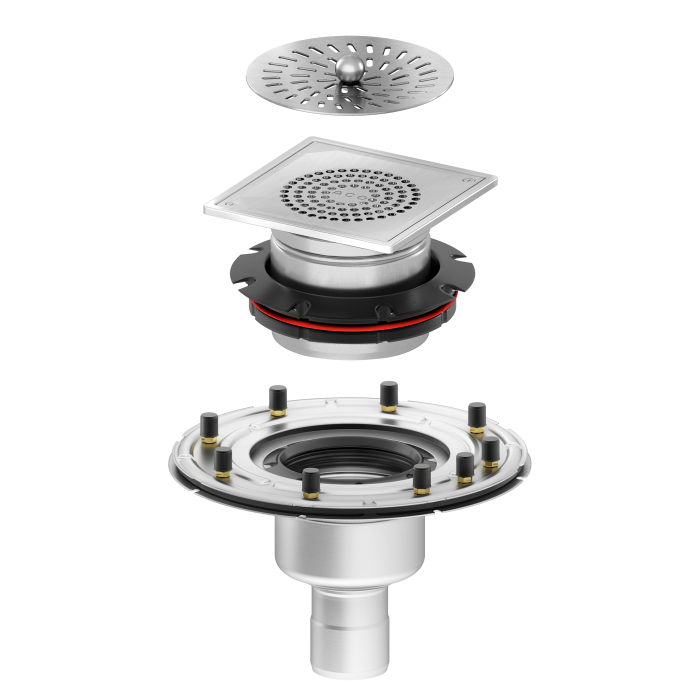

Gully with siphon in stainless steel AISI 304, type ACO EG150 HF for ceramic floors with mechanical clamping flange, low height, measures 150x150 mm, vertical outlet DN75, rounded body to facilitate cleaning, with removable siphon with a flow rate of 1,4 l/s and a retention of 53 mm of water height, segúaccording to EN-1253. Incorporates perforated grating and silk basket for collecting solids. pickled and passivated finish. Weight: 4,3 kg.
Article:00447211
Article:00447211
Characteristics
- Designed for sanitary applications
- Suitable for ceramic floors
- Available with different hydraulic capacities, bodies and outlet diameters
- Made in stainless steel AISI 304
- Pickled and passivated by chemical pickling to ensure the absence of corrosion in the joints
- Includes removable siphon
Technical Specifications

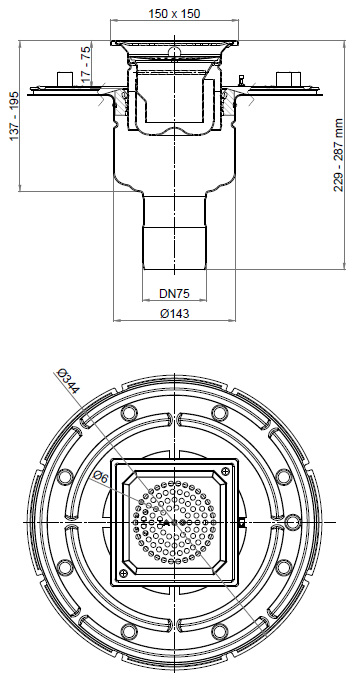

Dimensions
- D bottom (mm):
- 142
- H extermal (mm):
- 137-195
- Grating type:
- perforated
- Grating material:
- AISI304
- Weight (kg):
- 4,3
- DN (mm):
- 75
- Flow rate (l/s):
- 1,4
- Water seal (mm):
- 53
- Material:
- AISI304
