GRATE INSP MD/ML/XD 200 L500 C250 AISI304 BRICKSLOT-ST L 1 H105 R10
00446139
480,29 €
Description

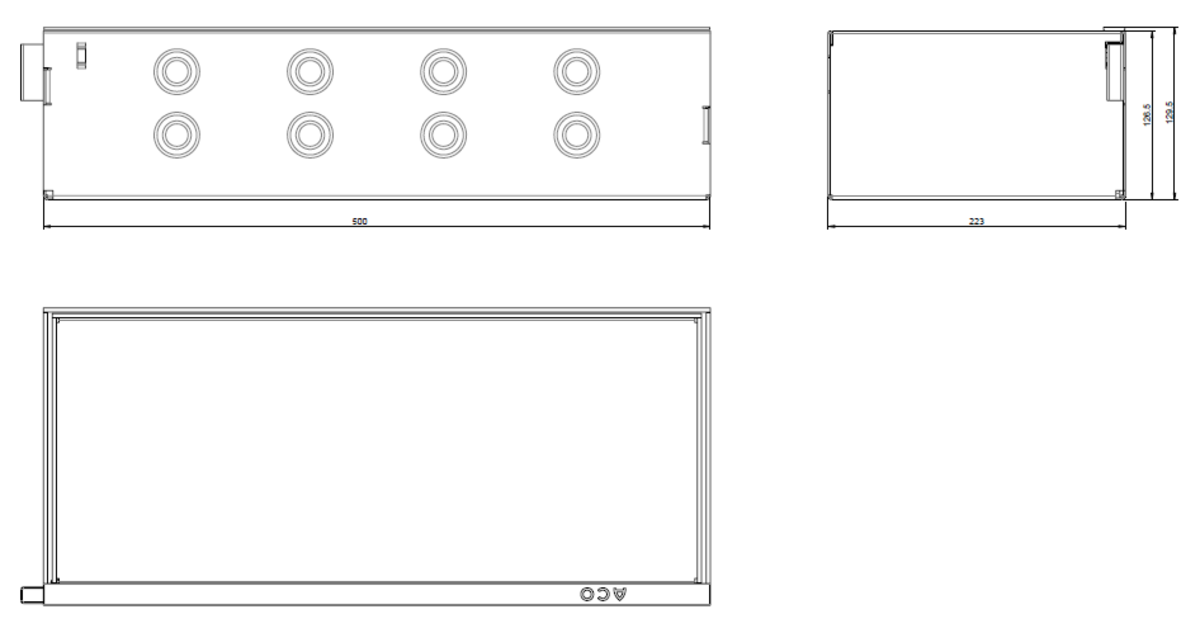

Grate type Brickslot-ST L for inspecction in stainless steel AISI 304, with load class C250 in accordance with EN1433, for surface drainage channels type ACO MULTIDRAIN/ MULTILINE/XTRADRAIN 200. Intake area of 100 cm²/m. Lenght overall 500 mm, external height 127 mm and external width 223 mm. Unit weight: 8,04 kg.
Technical Specifications
Dimensions
- Model:
- MULTIDRAIN/ MULTILINE/XTRADRAIN 200
- Length (mm):
- 500
- Width overall (mm):
- 223
- Total height (mm):
- 127
- Weight (kg):
- 8,04
- Intake area (cm²/m):
- 100
- Load Class:
- C250
