Description

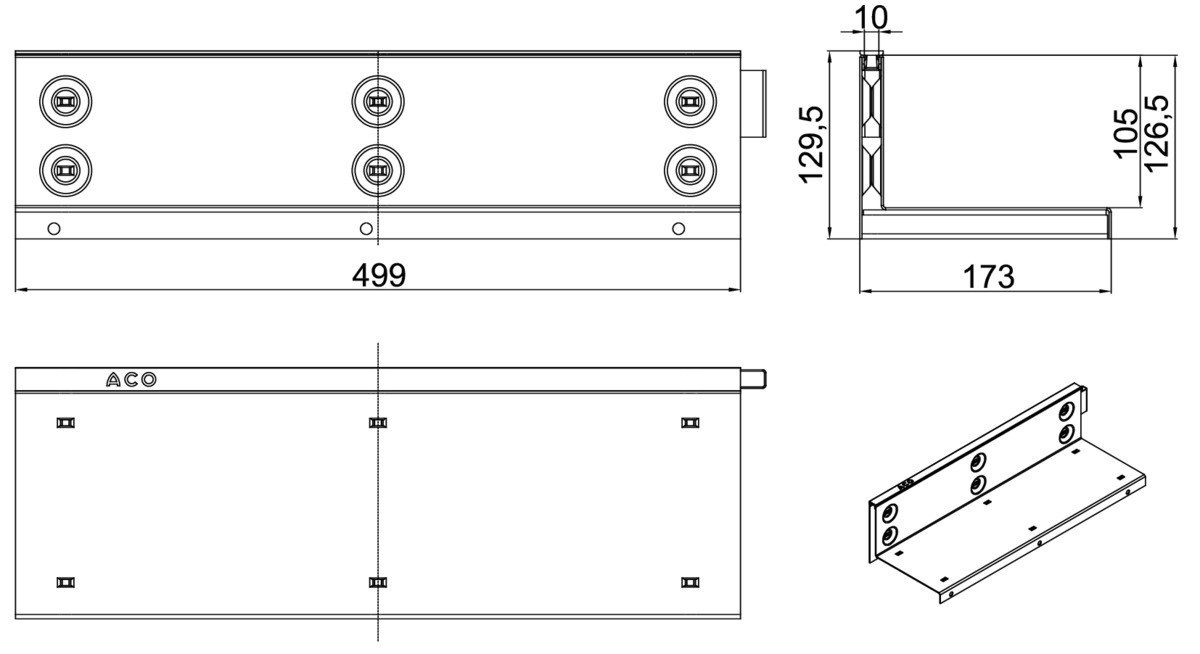

Grate type Brickslot-ST L in stainless steel AISI 304, with load class C250 in accordance with EN1433, for surface drainage channels type ACO MULTIDRAIN/ MULTILINE/XTRADRAIN 150. Intake area of 100 cm²/m. Lenght overall 500 mm, external height 127 mm and external width 173 mm. Unit weight: 3,48 kg.
Technical Specifications
Dimensions
- Intake area (cm²/m):
- 100
- Load Class:
- C250
- Weight (kg):
- 3,48
- Model:
- MULTIDRAIN/ MULTILINE/XTRADRAIN 150
- Length (mm):
- 500
- Width overall (mm):
- 173
- Total height (mm):
- 127
