Description

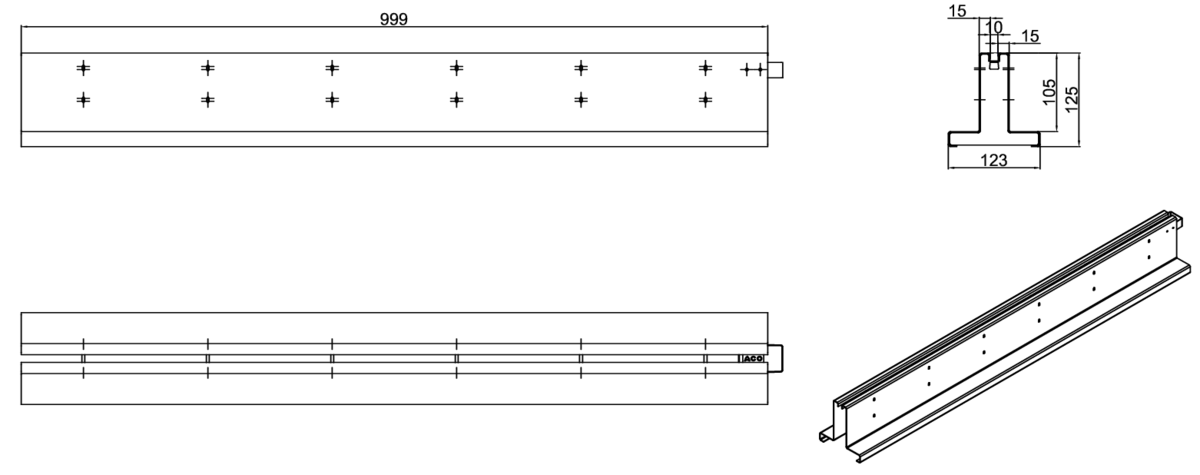

Grate type Brickslot-ST L in stainless steel AISI 304, with load class C250 in accordance with EN1433, for surface drainage channels type ACO MULTIDRAIN/ MULTILINE/XTRADRAIN 100. Intake area of 100 cm²/m. Lenght overall 1000 mm, external height 129 mm and external width 123 mm.
Technical Specifications
Dimensions
- Model:
- MULTIDRAIN/ MULTILINE/XTRADRAIN 100
- Length (mm):
- 1000
- Width overall (mm):
- 123
- Total height (mm):
- 129
- Intake area (cm²/m):
- 100
- Load Class:
- C250
