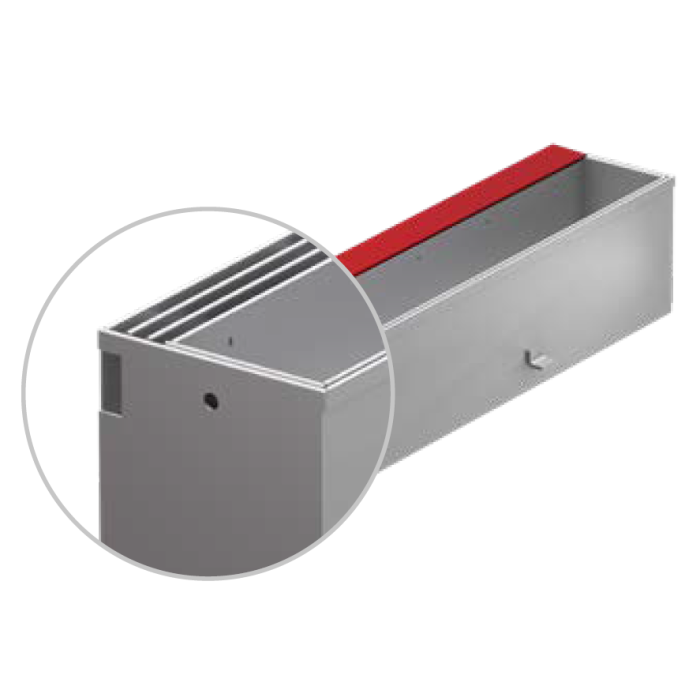

GRATE INSP MD/ML/XD 100 L500 C250 AISI304 BRICKSLOT-ST L TRIPLE H105 R8
00445943
488,31 €
Description
Grate type Brickslot-ST L for inspecction in stainless steel AISI 304, with load class C250 in accordance with EN1433, for surface drainage channels type ACO MULTIDRAIN/ MULTILINE/XTRADRAIN 100. Intake area of 300 cm²/m. Lenght overall 500 mm, external height 129 mm and external width 123 mm.
Technical Specifications

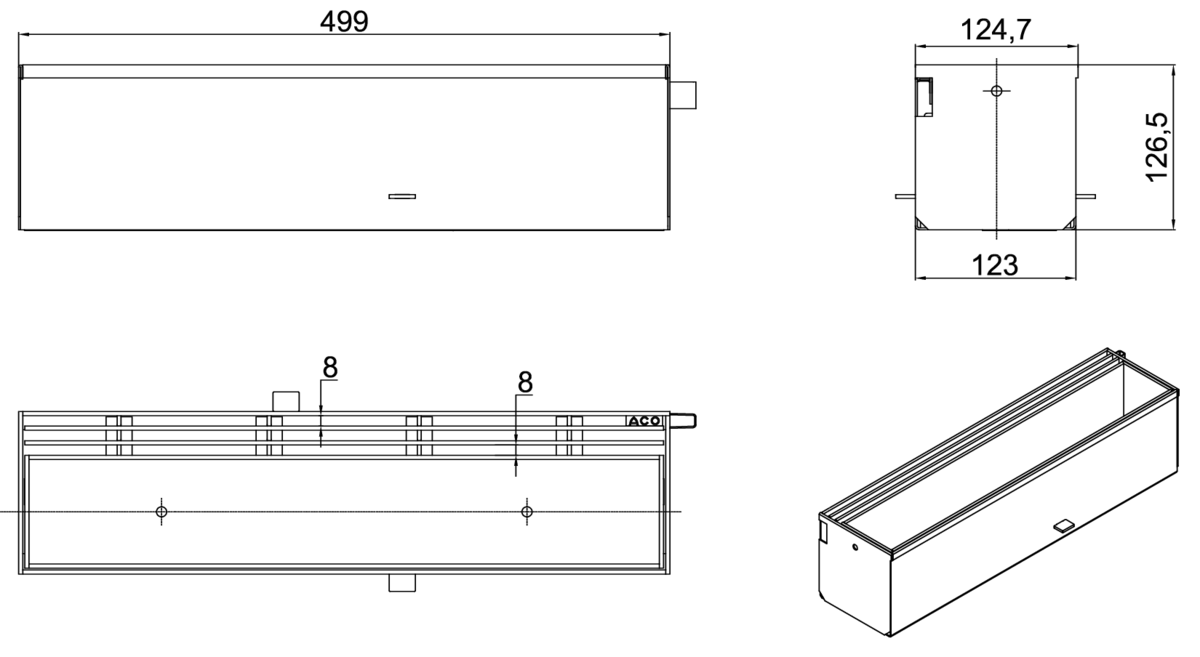

Dimensions
- Model:
- MULTIDRAIN/ MULTILINE/XTRADRAIN 100
- Length (mm):
- 500
- Width overall (mm):
- 123
- Total height (mm):
- 129
- Intake area (cm²/m):
- 300
- Load Class:
- C250
