Description

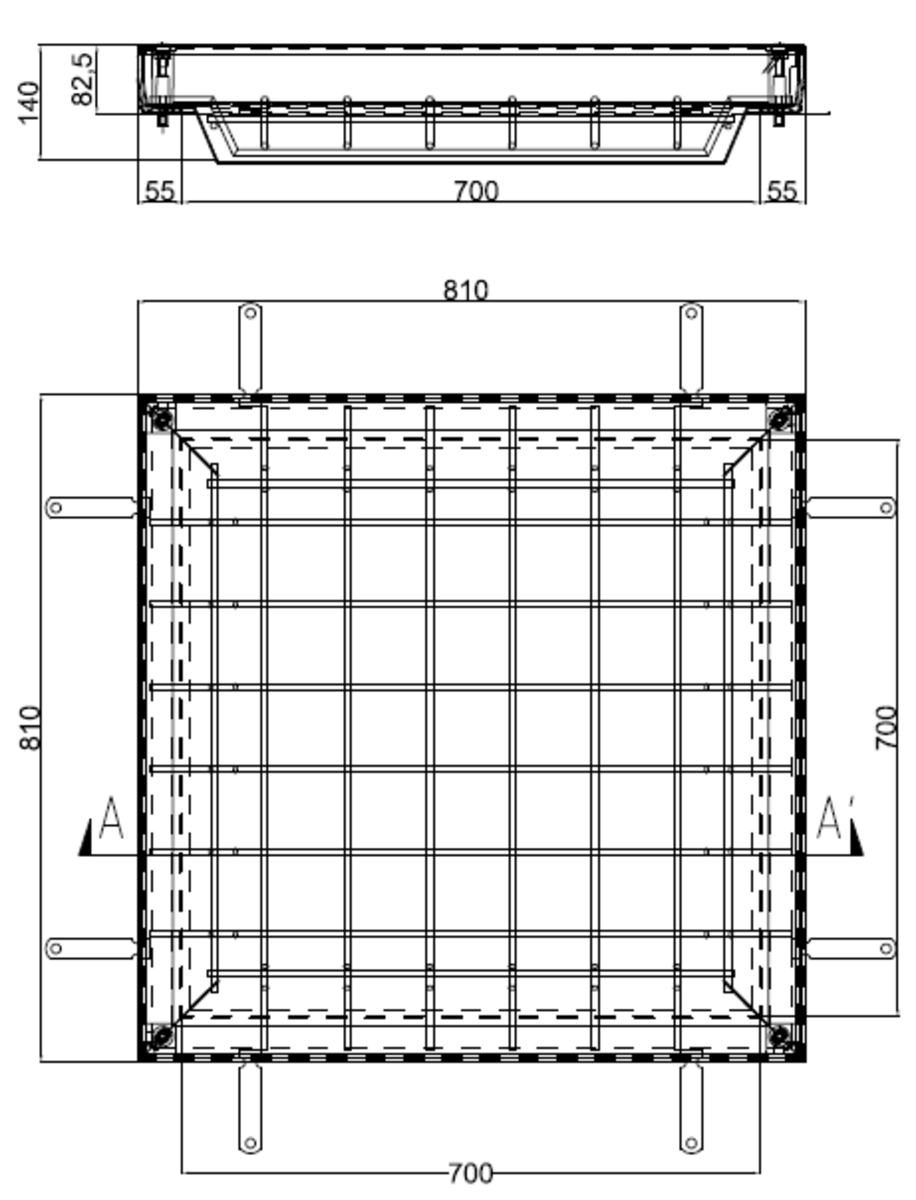

Manhole cover watertigh in stainless steel AISI 304, model ACO TOPTEK UNIFACE 2.0, clear light 700x700mm and external frame 810x810mm, total external height 82,5 mm, for load class N250, according norm EN1253-4. Includes NBR sealing for a perfect tightness, anchors to the concrete and allen screws for fixing between lid and frame.
Characteristics
- For installation on concrete, tiles or resin floors
- Also available in multicover assisted opening system
- Totally odour and water tight due to double sealing system
- Prepared to be filled with different materials: concrete, tiles, resin...
Technical Specifications
Dimensions
- Model:
- TOPTEK UNIFACE 2.0
- Material:
- AISI304
- Weight ( kg):
- 25,26
- Frame dimension CxD (mm):
- 810x810
- Max. Load Class:
- N250
- Assisted:
- No
- Lid height (mm):
- 140
- H (mm):
- 82,5
- Clear area AxB (mm):
- 700x700
