Description
ACO separador Hydrodynamic sediment separator model STORMSED VORTEX-P X 1200 for underground installation, with vertical design made in high-density polyethylene.For nominal flow of 30 l/s and maximum flow of 79 l/s, designed for remove 80% particles in suspension (TSS) larger than 75 microns and capture 100% of floatabeles.With a sludge capacity of 405 l, floatabeles capacity of 130 l and a total volume of 1334 l. The solution has DN300 inlet and outlet connections and inner parts hydrodinamic made in high-density polyethylene. Dimensions: 1452 mm length, Ø1230 mm diameter and 2194 mm height. Weight: 101 kg.
Characteristics
- Designed for 80% suspended solid particles removal of 75-micron particles at high treatment flow rates
- Compact treatment solution with low footprint
- Possibility of various outlet angles 90°–180° (optional)
- Patented design
- Direct and easy installation, ideal for anti-buoyancy and groundwater situations.
Technical Specifications
Dimensions 1
- Model:
- STORMSED VORTEX-P X 1200
- Nominal size (l/s):
- 30
- Max. Flow (l/s):
- 79
- Sediment capacity (l):
- 405
- floatabeles capacity (l):
- 130
- Total capacity (l):
- 1334
- Weight (kg):
- 101
- L (mm):
- 1452
- H (mm):
- 2194
- H1 (mm):
- 1550
- H2 (mm):
- 1550
- DN (mm):
- 300
- ØD1 (mm):
- Ø1230
- Td (mm):
- 644

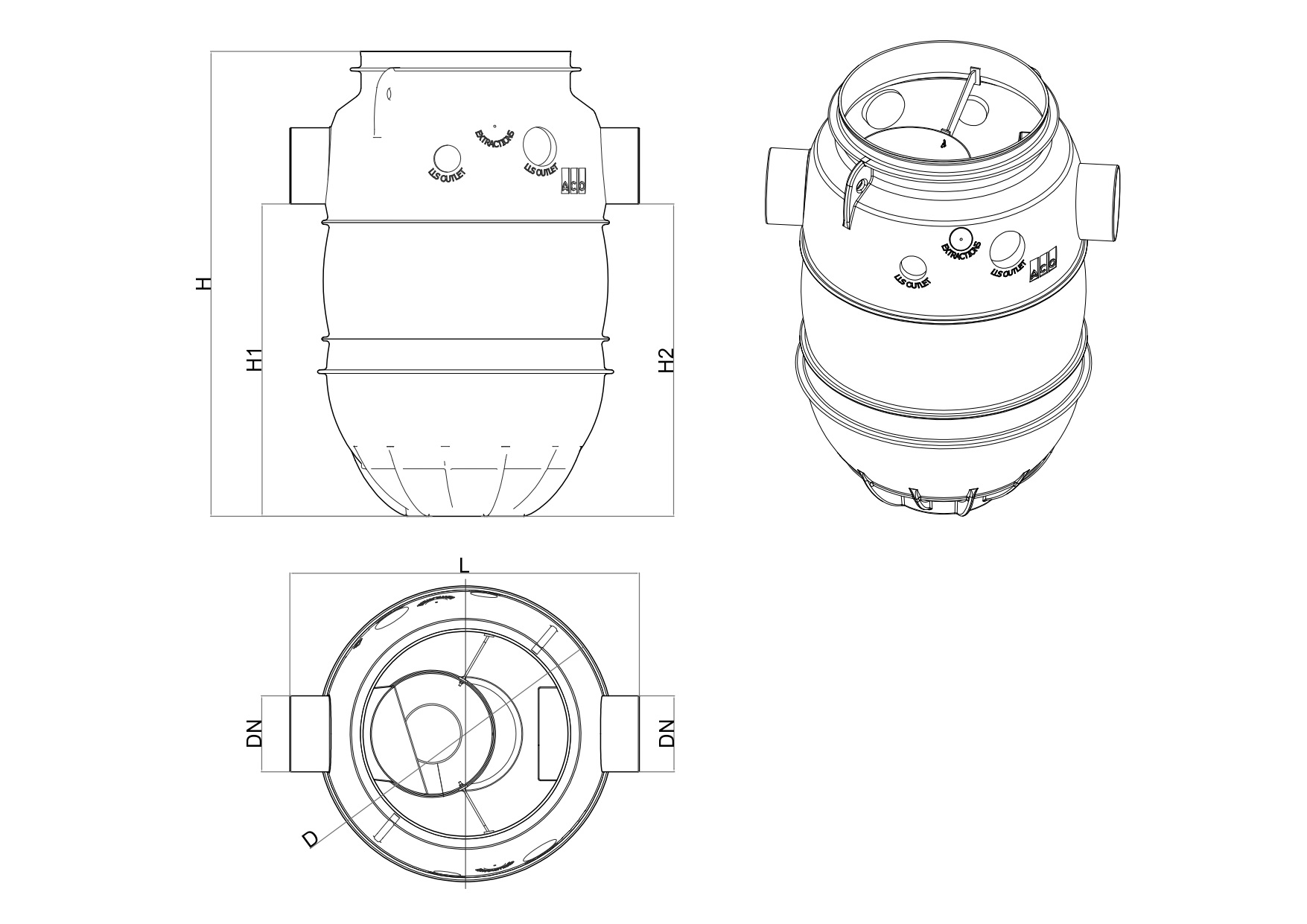

Dimensions 2
- H (mm):
- 2194
- H1 (mm):
- 1550
- H2 (mm):
- 1550
- D (mm):
- Ø1230
- L (mm):
- 1452
- DN (mm):
- 300
