Description

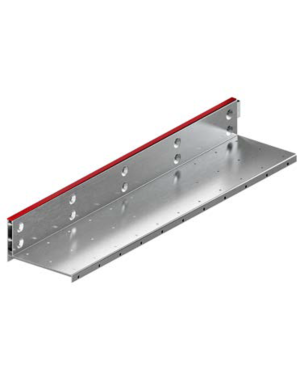

Grate type brickslot L in galvanised steel, with load class D400 in accordance with EN1433, for surface drainage channels type ACO MULTIDRAIN/ MULTILINE/XTRADRAIN 200. Intake area of 100 cm²/m. Lenght overall 1000 mm, external height 127 mm and external width 223 mm. Unit weight: 9,8 kg.
Technical Specifications
Dimensions
- Model:
- MULTIDRAIN/ MULTILINE/XTRADRAIN 200
- Length (mm):
- 1000
- Width overall (mm):
- 223
- Total height (mm):
- 127
- Weight (kg):
- 9,8
- Intake area (cm²/m):
- 100
- Load Class:
- D400
