GULLY FAT AISI316L EG150 TELESCOPICO 150X150MM CERAMIC OUT/V DN50 W/BASKET W/GR PERF W/FIX
00405551
Project: Consult
Description

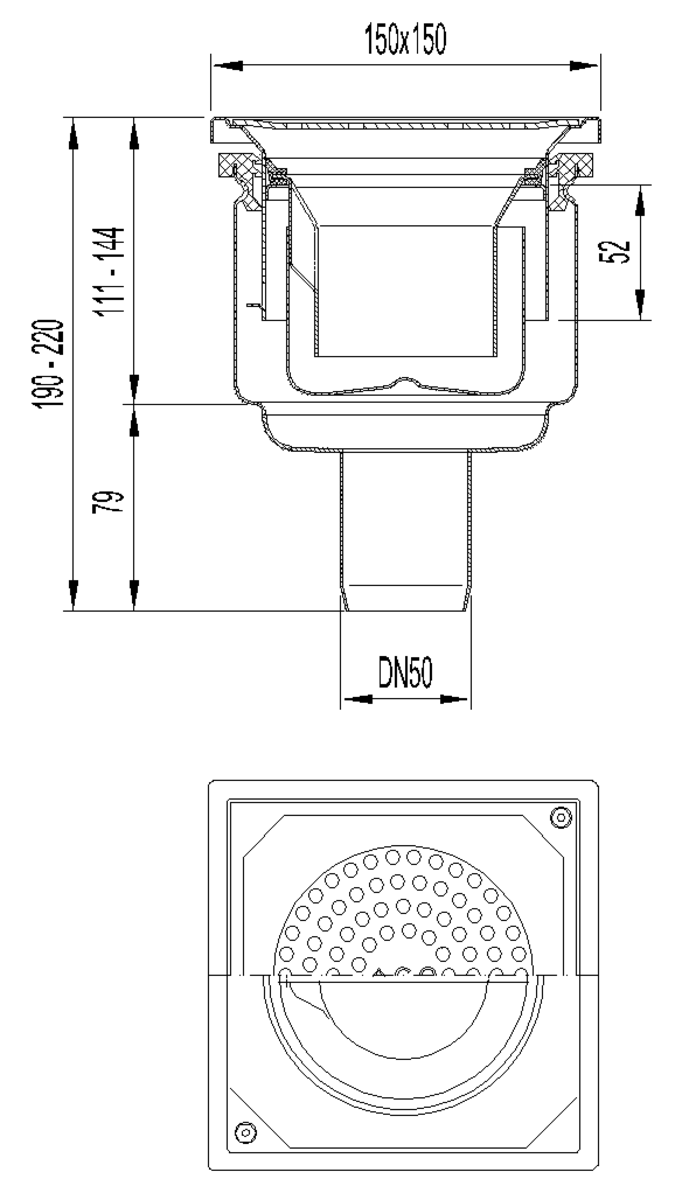

Gully with siphon in stainless steel AISI 316L, type ACO EG150 for ceramic floors, low height, measures 150x150 mm, vertical outlet DN50, rounded body to facilitate cleaning, with removable siphon with a flow rate of 1,2 l/s and a retention of 53 mm of water height, segúaccording to EN-1253. Incorporates perforated grating and silk basket for collecting solids. pickled and passivated finish. Weight: 1,64 kg.
Article:00405551
Article:00405551
Characteristics
- Designed for sanitary applications
- Suitable for ceramic floors
- Available with different hydraulic capacities, bodies and outlet diameters
- Made in stainless steel AISI 316L
- Pickled and passivated by chemical pickling to ensure the absence of corrosion in the joints
- Includes removable siphon
Technical Specifications
Dimensions
- Grating type:
- perforated
- Material:
- AISI316L
- Grating material:
- AISI316L
- Weight (kg):
- 1,64
- DN (mm):
- 50
- Flow rate (l/s):
- 1,2
- Water seal (mm):
- 53
- H extermal (mm):
- 190-225
