Description

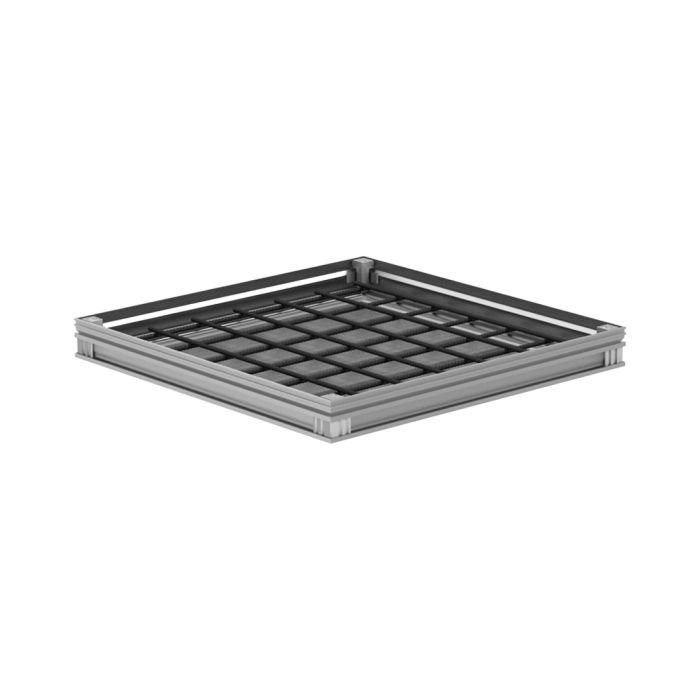

Manhole cover watertigh in aluminium, model ACO TOPTEK UNIFACE 1.0, clear light 400x400mm and external frame 498x498mm, total external height 72,5 mm, for load class M125 fully filled with concrete or 100kN in case of installing tiles up to 15mm thick, according norm EN1253-4. Includes NBR sealing for a perfect tightness and allen screws for fixing between lid and frame.
Characteristics
- For installation on concrete, tiles or resin floors
- Also available in multicover assisted opening system
- Totally odour and water tight due to double sealing system
- Prepared to be filled with different materials: concrete, tiles, resin...
- Extra sealing between frame and lid for dust tight
Technical Specifications
Dimensions
- Model:
- TOPTEK UNIFACE 1.0
- Material:
- ALUMINIO
- Weight ( kg):
- 7,07

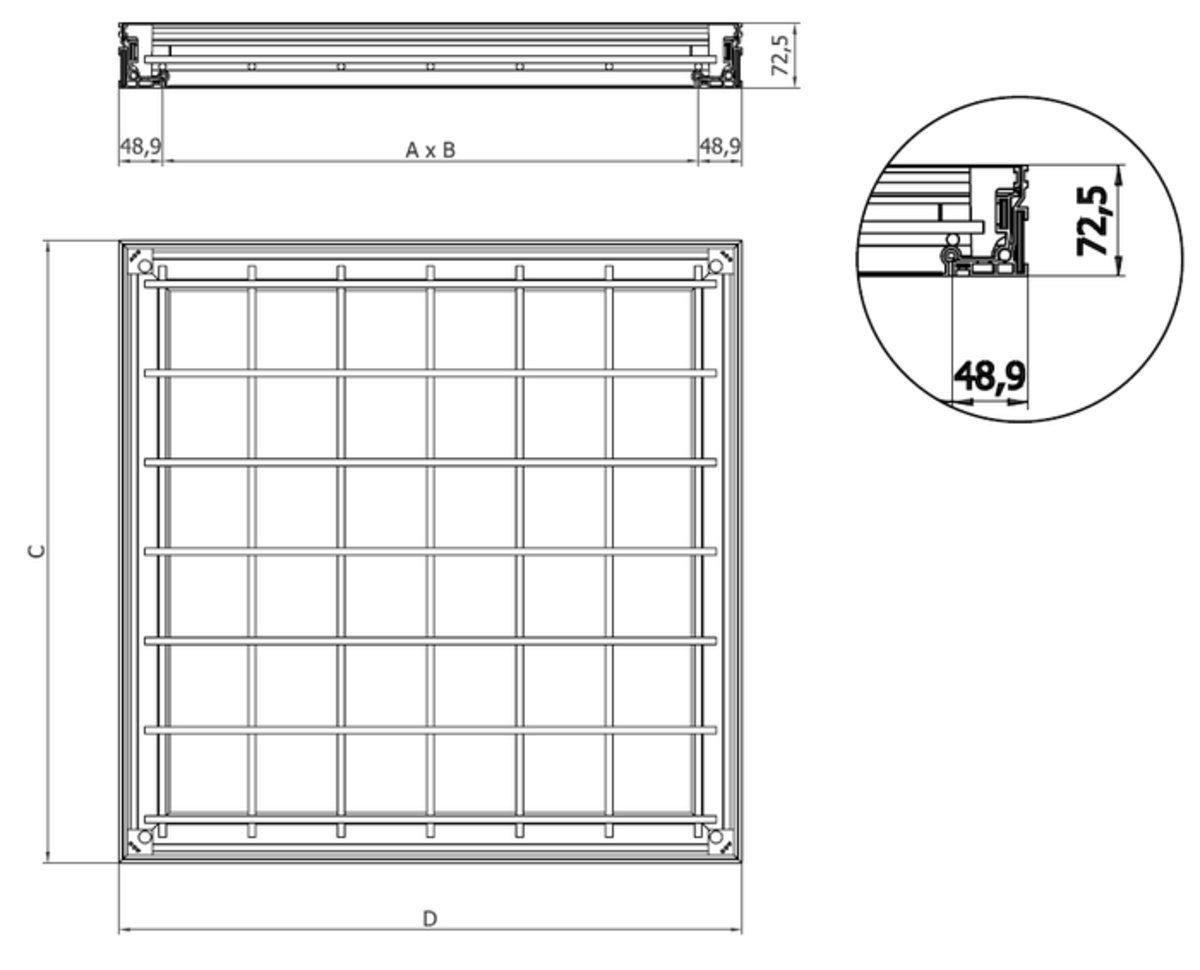

- Clear area AxB (mm):
- 400x400
- Frame dimension CxD (mm):
- 498x498
- Max. Load Class / with tiles:
- M125 / 100kN
- Assisted:
- No
- Lid height (mm):
- 70
- H (mm):
- 72,5
