GULLY FAT AISI304 EG150 TELESCOPICO 150X150MM CERAMIC IMP LIQUIDA OUT/V DN50 W/BASKET W/GR PERF W/FIX
00405155
Description
Gully with siphon in stainless steel AISI 304, type ACO EG150 for ceramic floors with frame for liquid waterproofing, low height, measures 150x150 mm, vertical outlet DN50 and 3 additional inlets DN32/40 over siphon, rounded body to facilitate cleaning, with removable siphon with a flow rate of 1,2 l/s and a retention of 53 mm of water height, segúaccording to EN-1253. Incorporates perforated grating and silk basket for collecting solids. pickled and passivated finish. Weight: 3,2 kg.
Article:00405155
Article:00405155
Characteristics
Technical Specifications

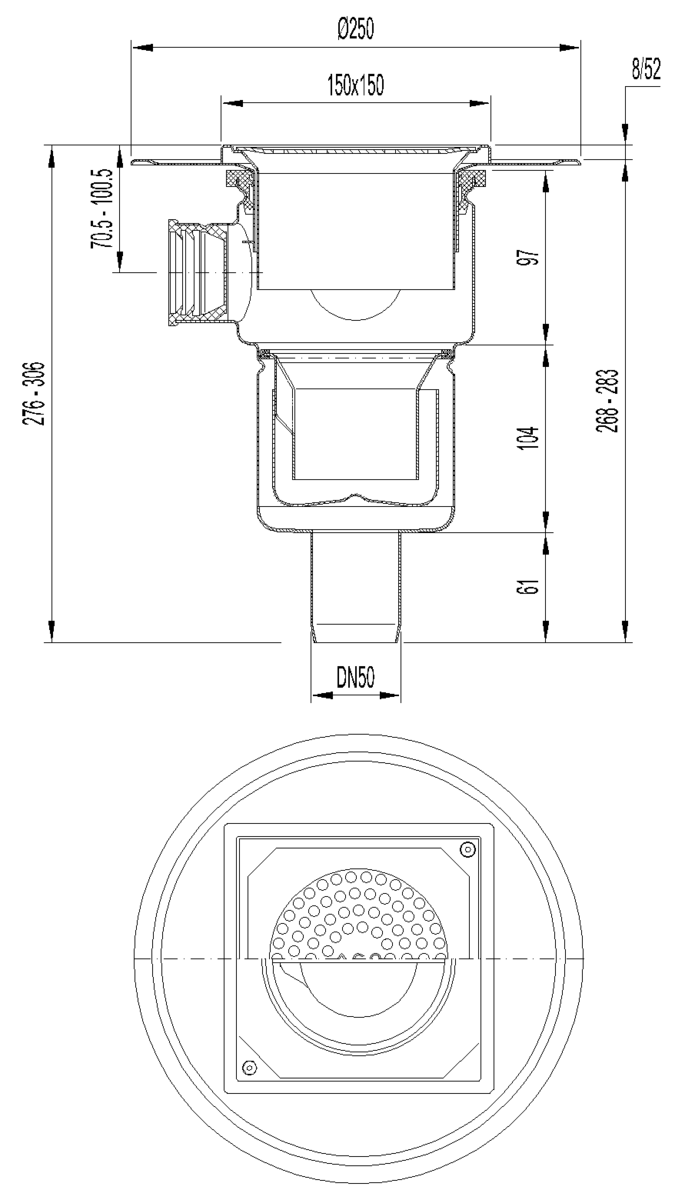

Dimensions
- :
- :
- :
- :
- :
- :
- :
- :
Technical datasheets
Manuals and installation sections
Certificates
