Description

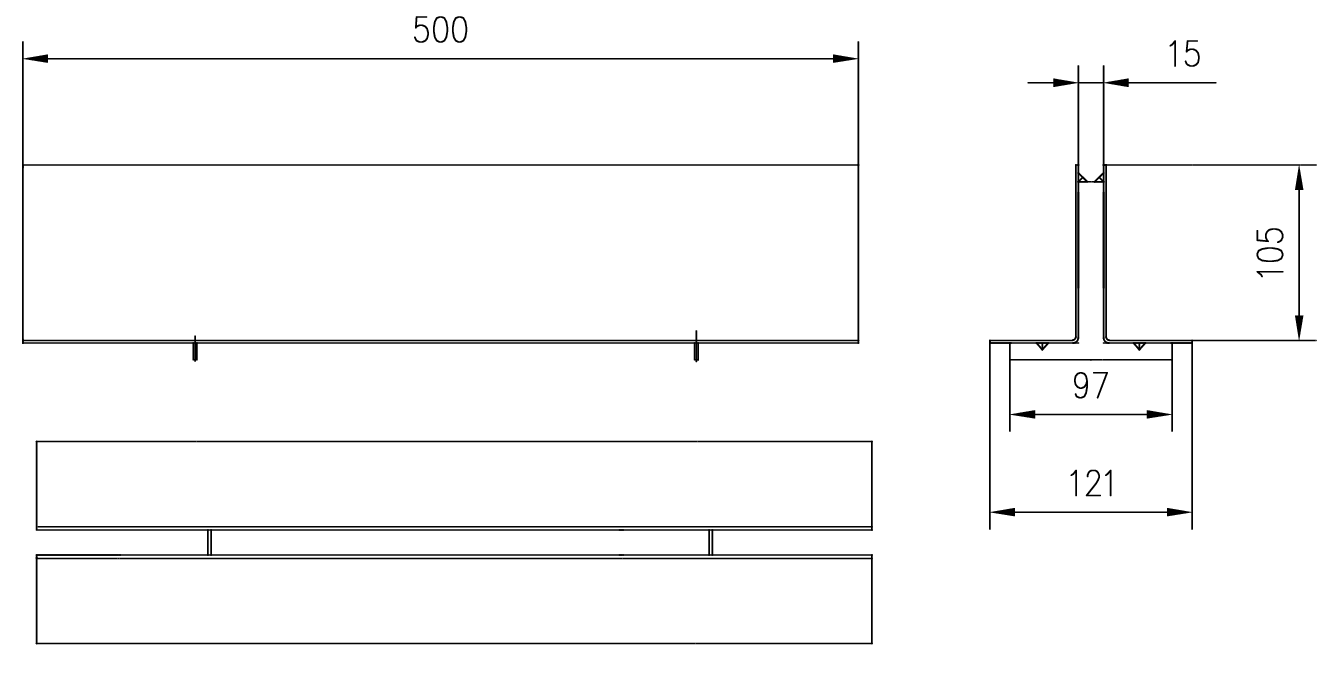

Grate type brickslot T in galvanised steel, with load class C250 in accordance with EN1433, for surface drainage channels type ACO SELF 100. Intake area of 150 cm²/m. Lenght overall 500 mm, external height 117 mm and external width 121 mm. Unit weight: 2,5 kg.
Technical Specifications
Dimensions
- Model:
- SELF 100
- Length (mm):
- 500
- Width overall (mm):
- 121
- Total height (mm):
- 117
- Weight (kg):
- 2,5
- Intake area (cm²/m):
- 150
- Load Class:
- C250
