CNL MD 300 1000MM H210 DN/OD 200 D400

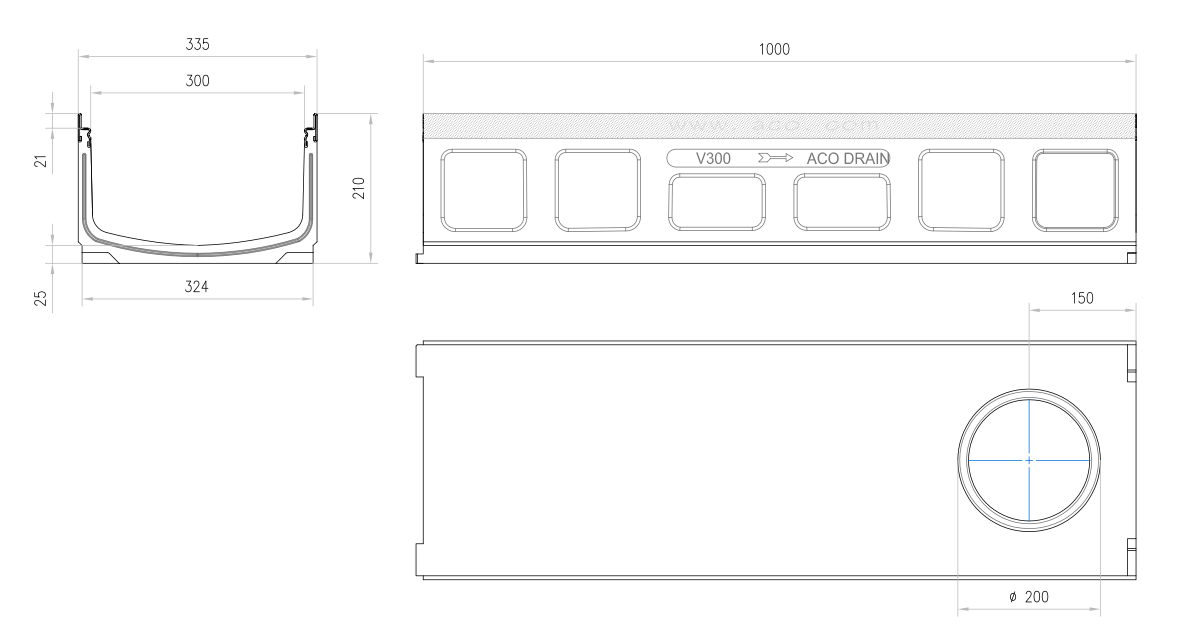

Drainage channel type ACO MULTIDRAIN 300 H210 in polymer concrete, load class D400 according to EN-1433. Without grating. With locking system by Drainlock® over galvanised edge rails integrated on channel body wall. With internal section 470 cm² and V-shape optimized transverse section. With vertical preformed DN/OD 200. Total length 1000 mm, overall heigth 210 mm and overall width 335 mm. Nominal width 300 mm. Weight: 36,7 kg.
