CNL MD 200 BA 1000MM H180 DN/OD 160 D400

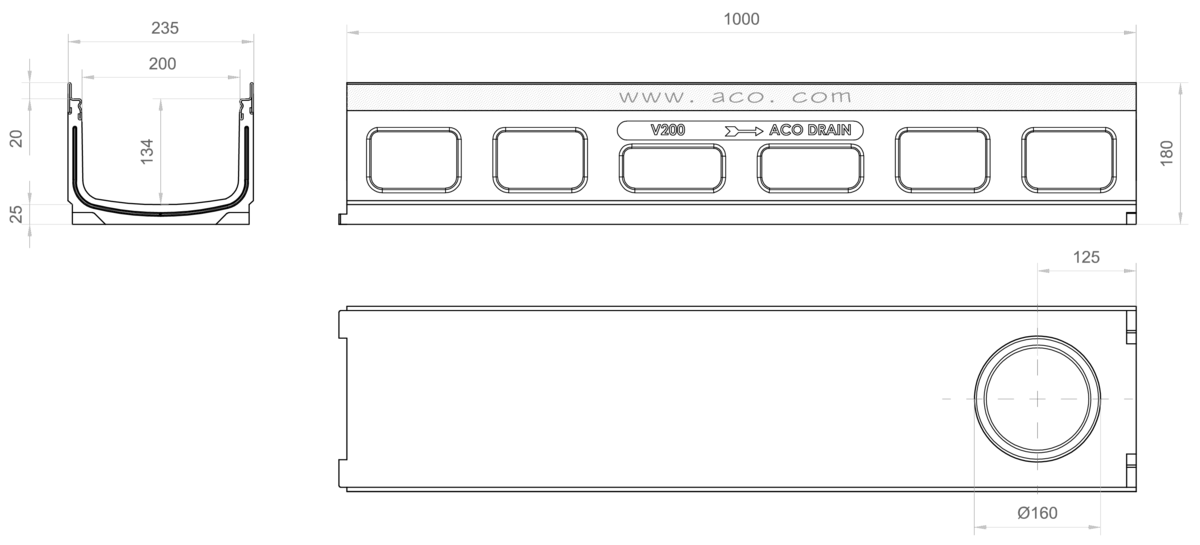

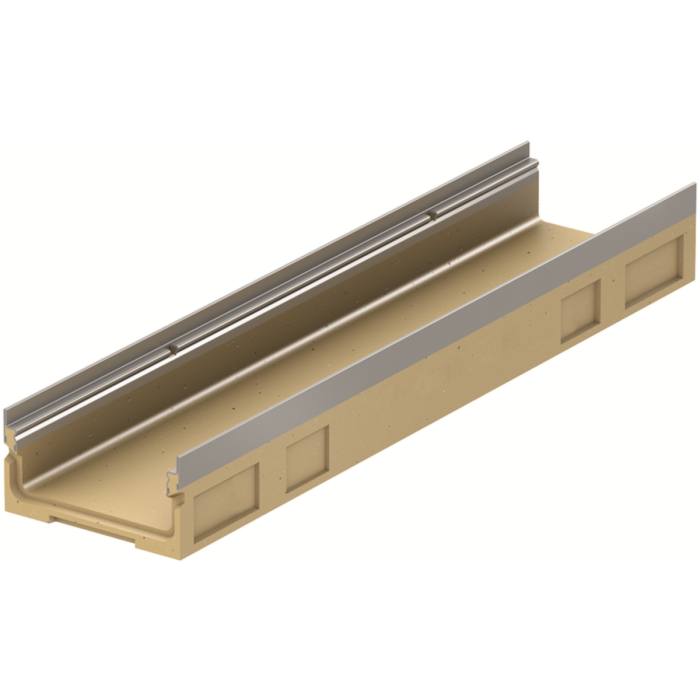

Drainage channel type ACO MULTIDRAIN 200 BA H180 in polymer concrete, load class D400 according to EN-1433. Without grating. With locking system by Drainlock® over galvanised edge rails integrated on channel body wall. With internal section 260 cm² and V-shape optimized transverse section. With vertical preformed DN/OD 160. Total length 1000 mm, overall heigth 180 mm and overall width 235 mm. Nominal width 200 mm. Weight: 24,8 kg.
