CNL MD 150 BA 1000MM H160 DN/OD 110 D400

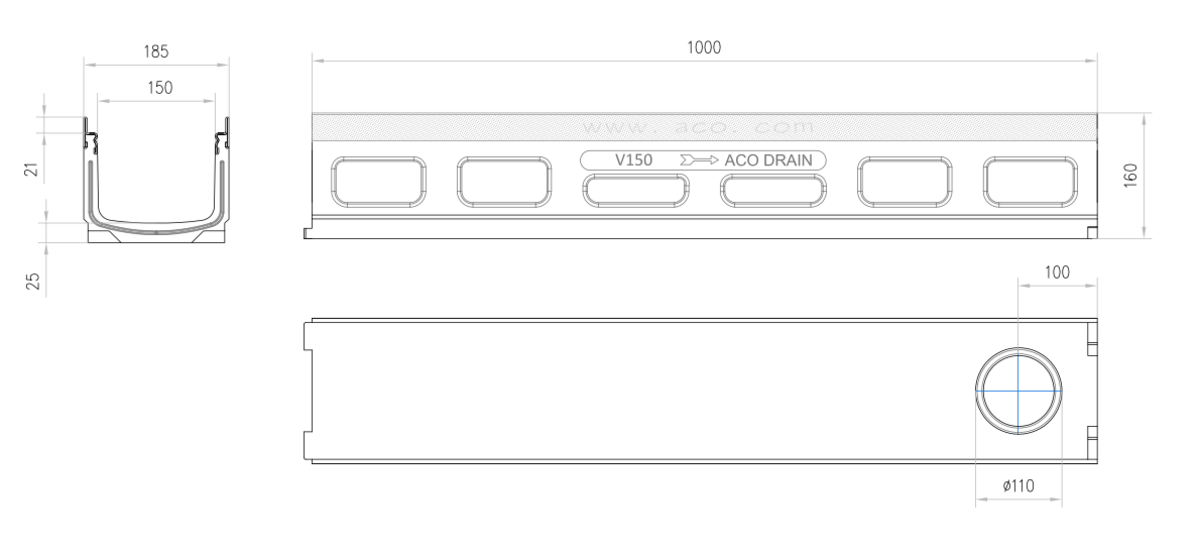

Drainage channel type ACO MULTIDRAIN 150 BA H160 in polymer concrete, load class D400 according to EN-1433. Without grating. With locking system by Drainlock® over galvanised edge rails integrated on channel body wall. With internal section 167 cm² and V-shape optimized transverse section. With vertical preformed DN/OD 110. Total length 1000 mm, overall heigth 160 mm and overall width 185 mm. Nominal width 150 mm. Weight: 19,3 kg.
