CHANNEL SELF 100 H145 WITH SLOTTED GRATING A15 GALVANISED W/LOCK CLIP
00330040
60,71 €
Description

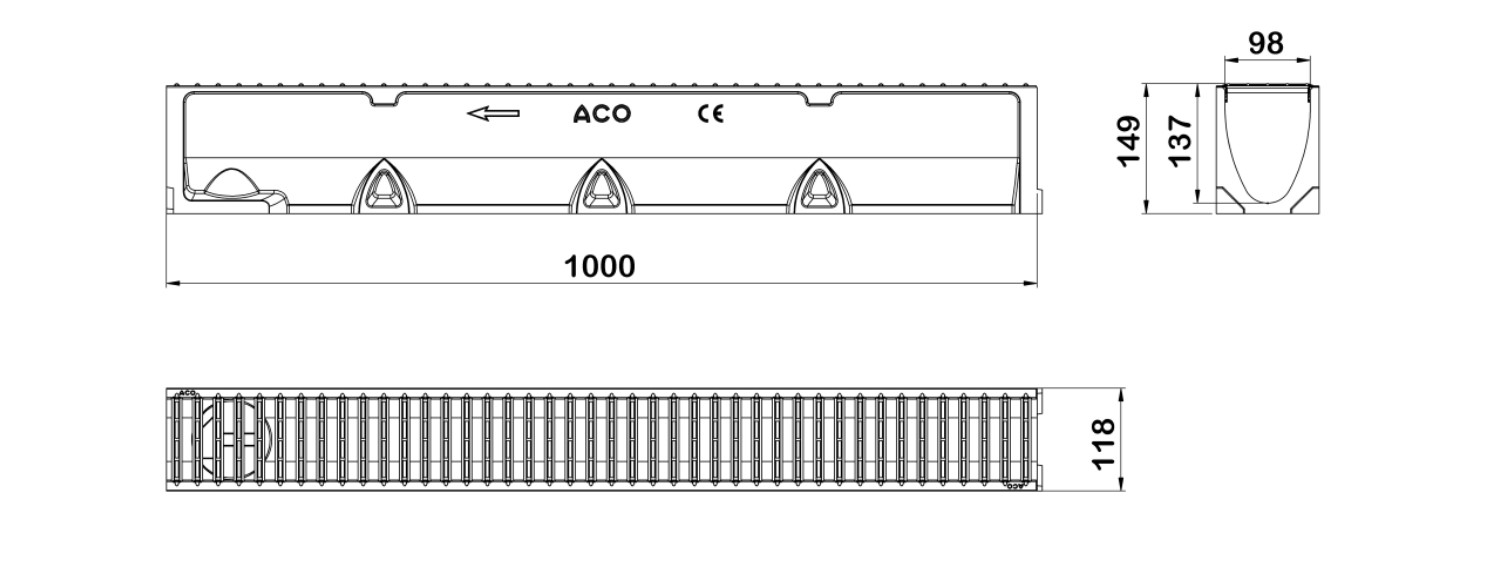

Set of drainage channel type ACO SELF 100 H145 in polymer concrete with grating type slotted in galvanised with load class A15 according to EN1433. With locking system by clip. Internal section 105 cm². With vertical preformed DN/OD 110. Total lenght 1000, overall heigth 145 mm and overall width 118 mm. Nominal width 98 mm. Weight: 12,35 kg.
Technical Specifications
Dimensions
- Load class:
- A15
- Flow rate (l/s):
- 5,2
- Model:
- SELF 100
- Length (mm):
- 1000
- Width (mm):
- 118
- Height (mm):
- 145
- Weight (kg):
- 12,35
- Intake area (cm2/m):
- 468
- Internal section (cm²):
- 105
- Preformed:
- DN/OD 110
- Locking system:
- clip
- Channel material:
- polymer concrete
- Grating material:
- galvanised
- :
